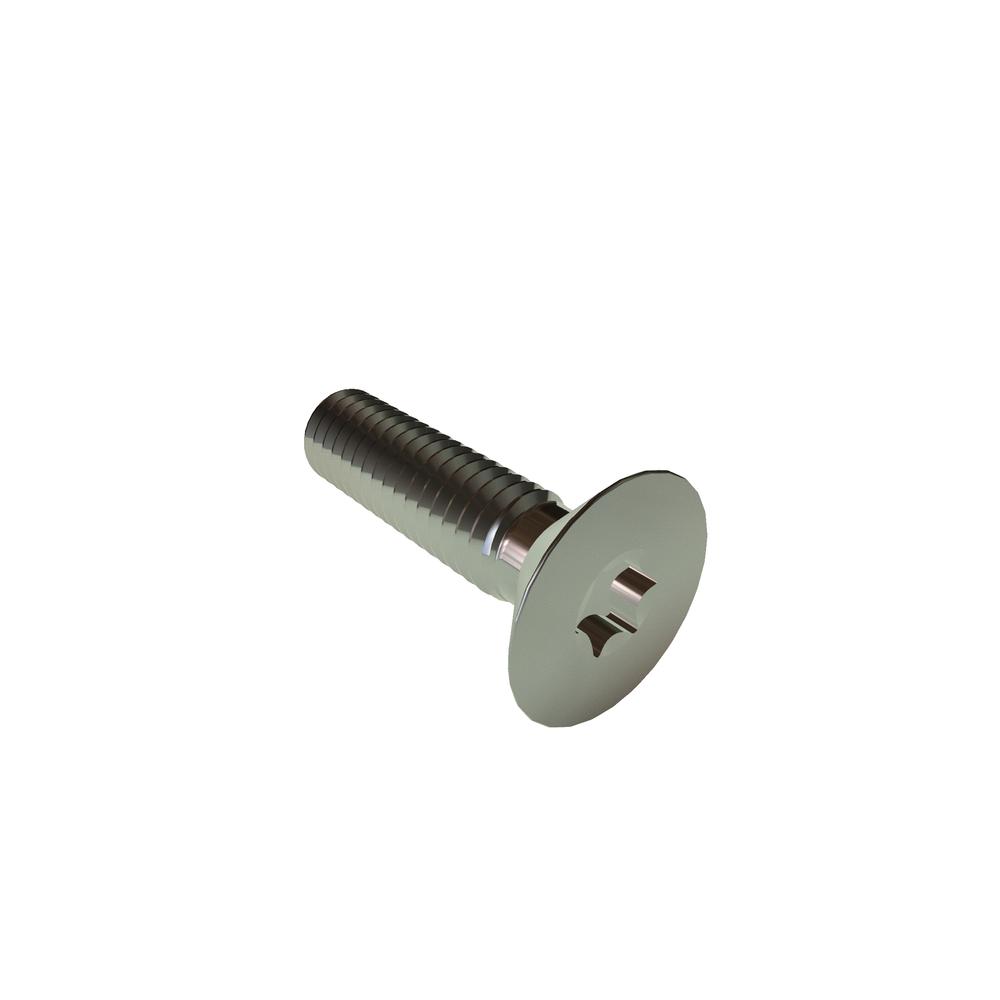

M4-.7 X 16 TORX FLAT SST
.4C16XFMS
| Item Id | .4C16XFMS |
| Description | M4-.7 X 16 TORX FLAT SST RoHS |
| Extended Description | ISO 14581 |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | T20 |
| Drive Type | Torx |
| Finish | Plain |
| Head Diameter (Max.) | 8.4 mm |
| Head Diameter (Min.) | 8.04 mm |
| Head Height | 2.70 mm |
| Head Type | Flat |
| Length | 16mm |
| Material | Stainless Steel |
| Meets (Standard) | ISO 14581 |
| Nominal Diameter | 4.00 mm |
| Recess Depth (Max.) | 1.14 mm |
| Recess Depth (Min.) | 1.14 mm |
| Recess Diameter | 3.95 mm |
| Thread Size | M4x0.7 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
