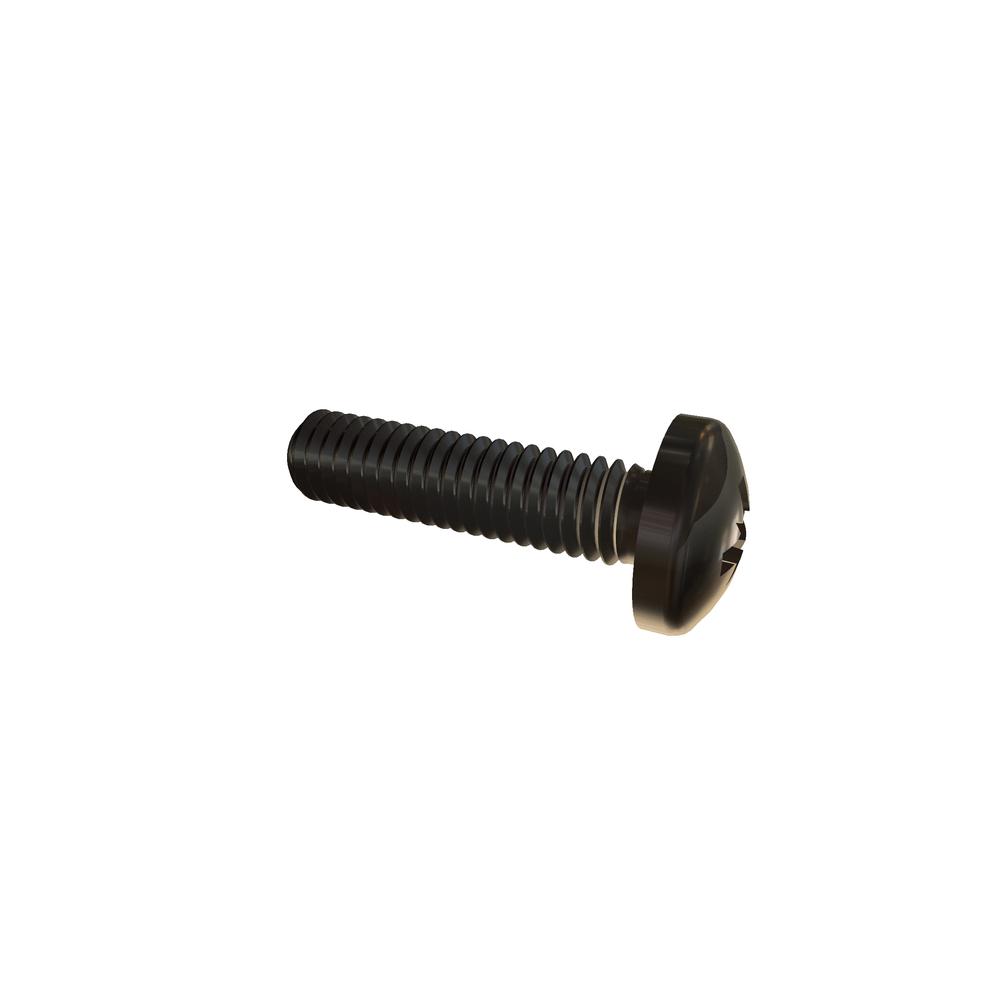

Image for reference purposes only. Actual product may vary.
.4C16ZPM3
M4-.7 X 16 POZI PAN 316 SST RoHS
Alternate Codes: N/A
M4-.7 X 16 Pozi Pan Head 316 Stainless Steel RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs |
|---|---|---|---|
| $0.270 | $0.142 | $0.113 | $0.104 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 16mm |
| Thread Size | M4x0.7 |
| Finish | Plain |
| Brand | VARIED |
| Drive Type | Pozi |
| Material | 316 Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 4.00 mm |
| Head Type | Pan |
| Drive Size | 2 |
| Recess Diameter | 4.36 mm |
| Head Radius (Min.) | 6.50 mm |
| Body Diameter (Min.) | 3.43 mm |
| Recess Depth | 2.54 mm |
| RoHS | Compliant |
| Meets (Standard) | B18.6.7M |
| Body Diameter (Max.) | 4.00 mm |
| Head Diameter (Max.) | 8.00 mm |
| Head Diameter (Min.) | 7.64 mm |
| Head Height (Max.) | 3.10 mm |
| Head Height (Min.) | 2.92 mm |
