.4C20BHC3

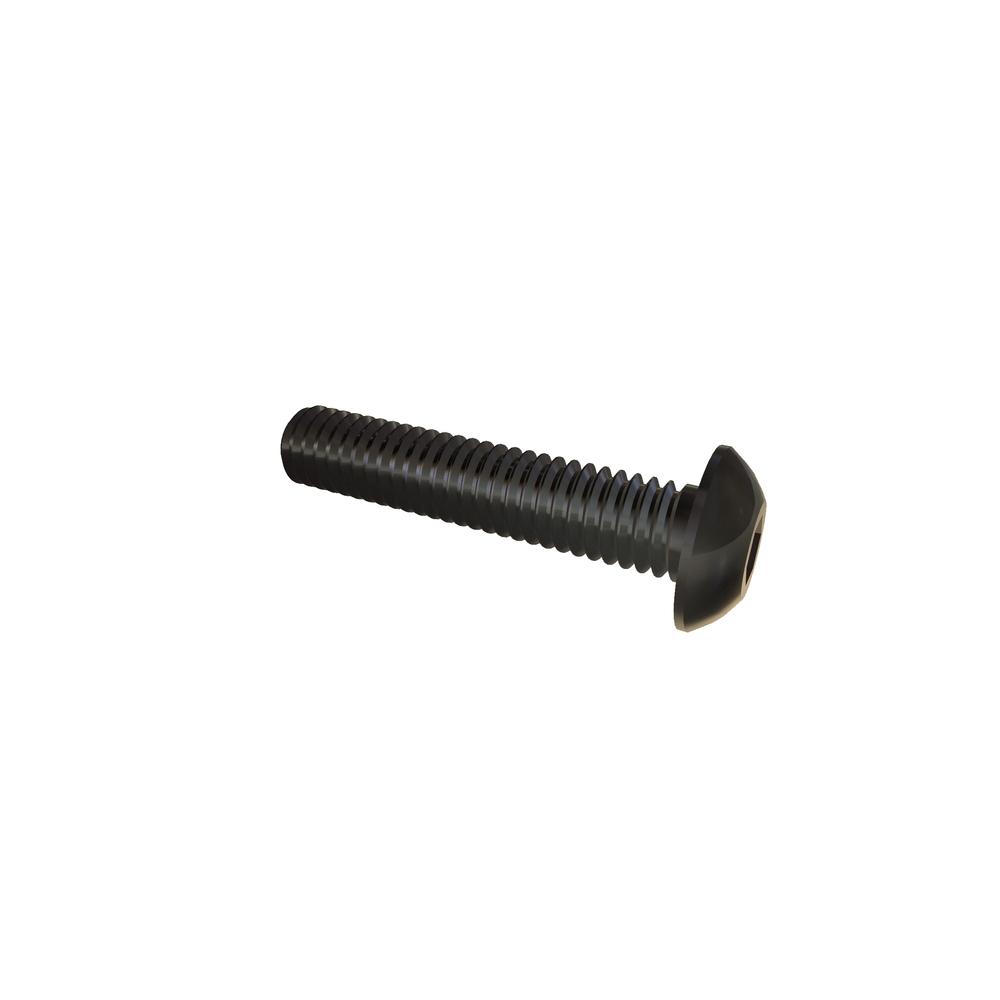

M4-.7 X 20 BUT SOC 316SST
Alternate Codes: 94500A283
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M4x0.7 |
| Material | 316 Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 4 mm |
| Head Type | Button |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Min.) | 4.40 mm |
| Fillet Transition Diameter (Max.) | 4.70 mm |
| Head Side Height (Ref.) | 0.38 mm |
| Key Engagement | 1.30 mm |
| Brand | VARIED |
| Additional Industry Cross Reference | 94500A283 |
| Length | 20mm |
| Meets (Standard) | ASME B18.3.4M |
| Head Diameter (Max.) | 7.60 mm |
| Head Diameter (Min.) | 7.24 mm |
| Head Height (Max.) | 2.20 mm |
| Head Height (Min.) | 1.95 mm |
| Hex Socket Size | 2.50 mm |
