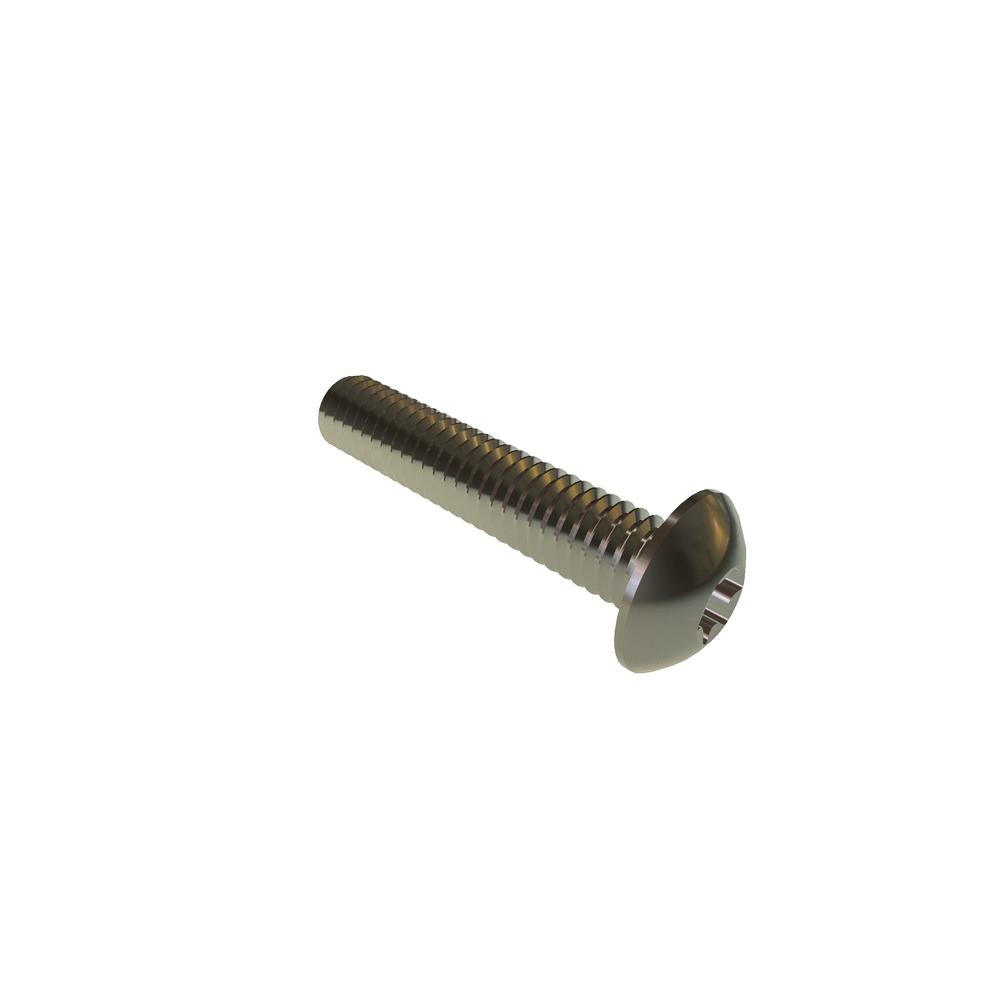

Image for reference purposes only. Actual product may vary.
.4C20BHXS/P
M4-.7 X 20 TORXR T-15 BUT HD MS PATCH
Alternate Codes: N/A
SST RoHS
Pricing per Unit
| 1-49 pcs |
|---|
| $4.474 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 20mm |
| Thread Size | M4-.7 |
| Finish | Plain |
| Drive Type | Torx Socket |
| Head Type | Button |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 4 mm |
| Drive Size | T20 |
| Fillet Transition Diameter (Min.) | 4.40 mm |
| Fillet Transition Diameter (Max.) | 4.70 mm |
| Head Side Height (Ref.) | 0.38 mm |
| Torx Socket Size | 3.27 mm |
| Self Locking Type | Patchlock |
| Brand | VARIED |
| Key Engagement (Min.) | 1.30 mm |
| RoHS | Compliant |
| Meets (Standard) | ASME/ANSI B18.3.4M |
| Head Diameter (Max.) | 7.60 mm |
| Head Diameter (Min.) | 7.24 mm |
| Head Height (Max.) | 2.20 mm |
| Head Height (Min.) | 1.95 mm |
| Hex Socket Size | 2.50 mm |
