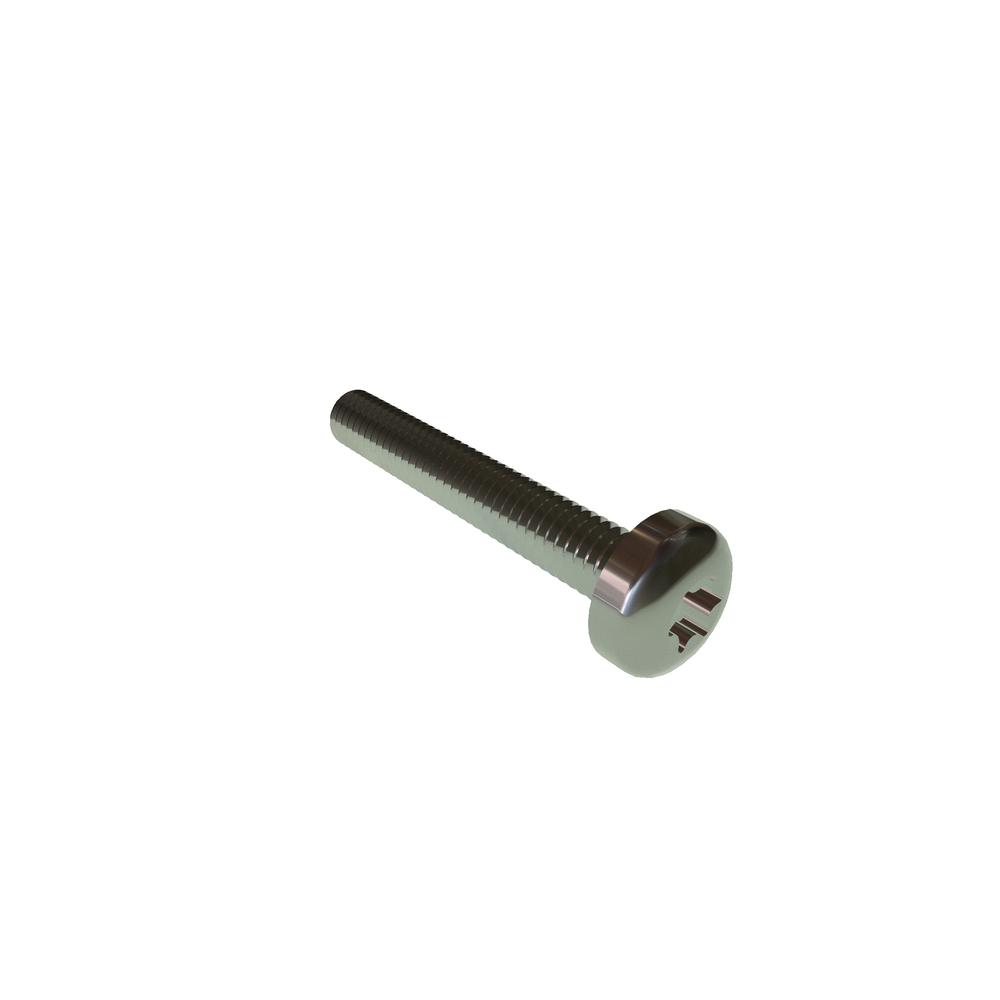

Image for reference purposes only. Actual product may vary.
.4C27XPMS
M4-.7 X 27 TORX PAN SST RoHS
Alternate Codes: N/A
M4-.7 X 27 Torx Pan Head Stainless Steel RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 27mm |
| Thread Size | M4x0.7 |
| Finish | Plain |
| Brand | VARIED |
| Drive Type | Torx |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 4.00 mm |
| Head Type | Pan |
| Drive Size | T20 |
| Recess Diameter | 3.86 mm |
| Head Radius (Min.) | 6.50 mm |
| Recess Depth (Min.) | 1.27 mm |
| Recess Depth (Max.) | 1.66 mm |
| RoHS | Compliant |
| Meets (Standard) | ISO 14583 |
| Head Diameter (Max.) | 8.00 mm |
| Head Diameter (Min.) | 7.64 mm |
| Head Height (Max.) | 3.10 mm |
| Head Height (Min.) | 2.92 mm |
