.4C30SHCS

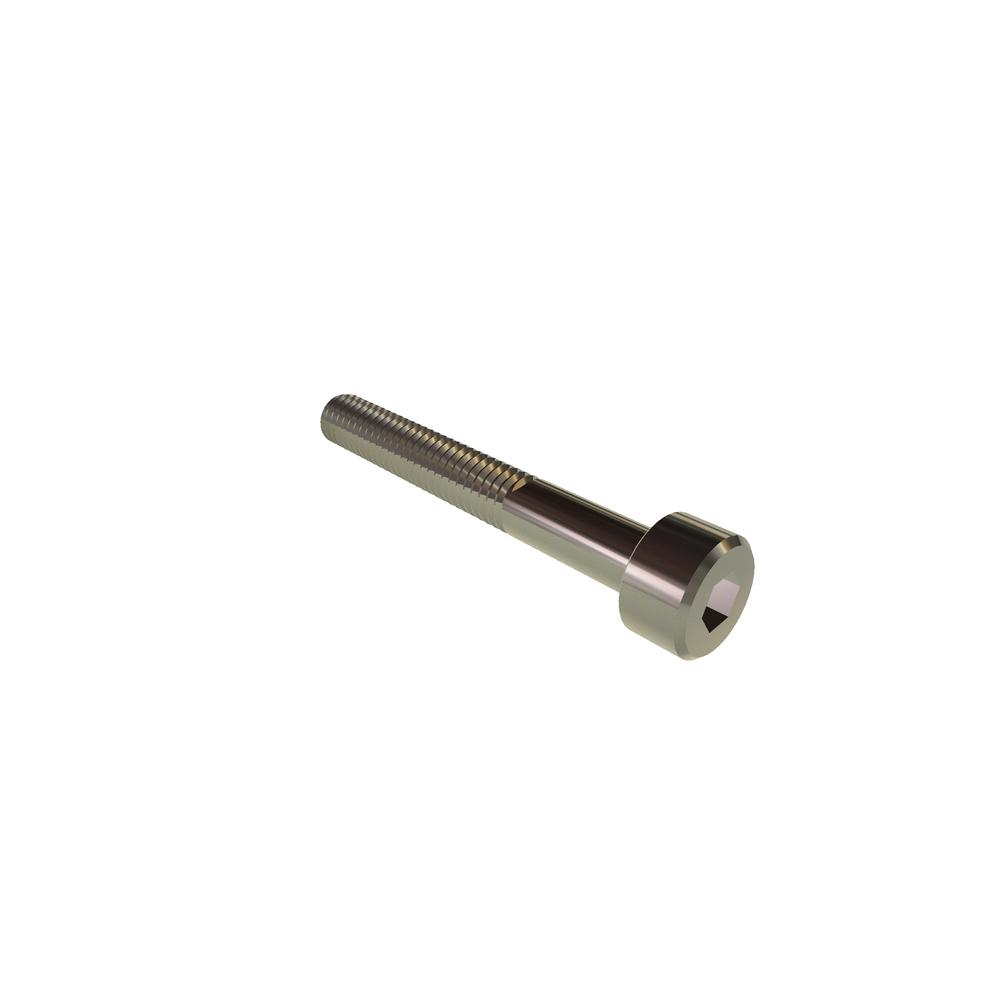

M4-.7 X 30 SOC CAP SST RoHS
Alternate Codes: 42377, 519958-2136, 91292A130, BN611 M4X30
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.416 | $0.219 | $0.173 | $0.160 | $0.134 | Larger Quantities |
Out of stock
| Thread Size | M4x0.7 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Head Type | Socket |
| Drive Type | Hex Socket |
| Brand | VARIED |
| Additional Industry Cross Reference | 91292A130 91292A130 |
| Key Engagement (Min.) | 2.00 mm |
| Length | 30mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3.1M |
| Body Diameter (Max.) | 4.00 mm |
| Head Diameter (Max.) | 7.00 mm |
| Head Diameter (Min.) | 6.80 mm |
| Head Height (Max.) | 4.00 mm |
| Head Height (Min.) | 3.88 mm |
| Hex Socket Size | 3.00 mm |
