.4C30ZFMZR

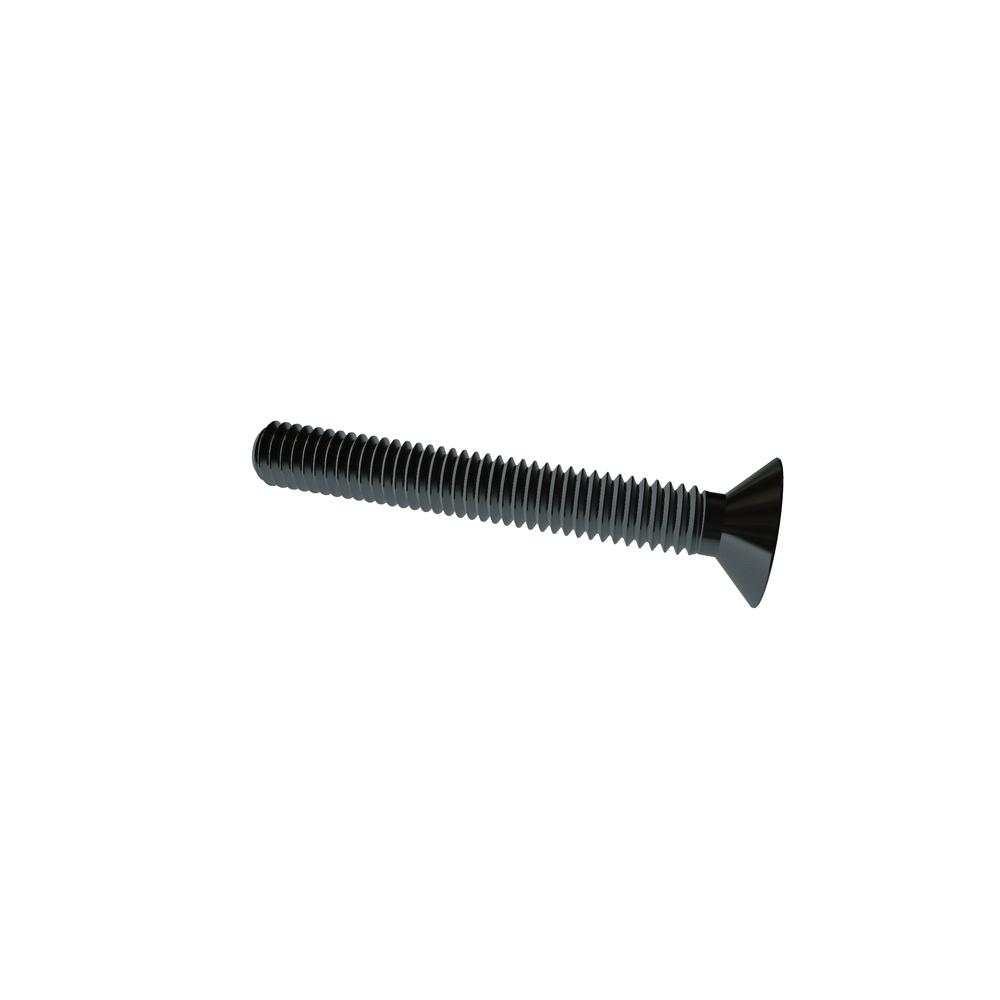

M4-.7 X 30 POZI FLAT STL ZN CR3
Alternate Codes: N/A
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.238 | $0.125 | $0.099 | $0.092 | $0.077 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M4x0.7 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 4.00 mm |
| Head Type | Flat |
| Drive Type | Pozi |
| Drive Size | 2 |
| Recess Diameter | 4.44 mm |
| Head Height | 2.70 mm |
| Recess Depth (Min.) | 2.06 mm |
| Recess Depth (Max.) | 2.51 mm |
| Recess Width | 0.91 mm |
| Brand | VARIED |
| Length | 30mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 8.40 mm |
| Head Diameter (Min.) | 8.04 mm |
