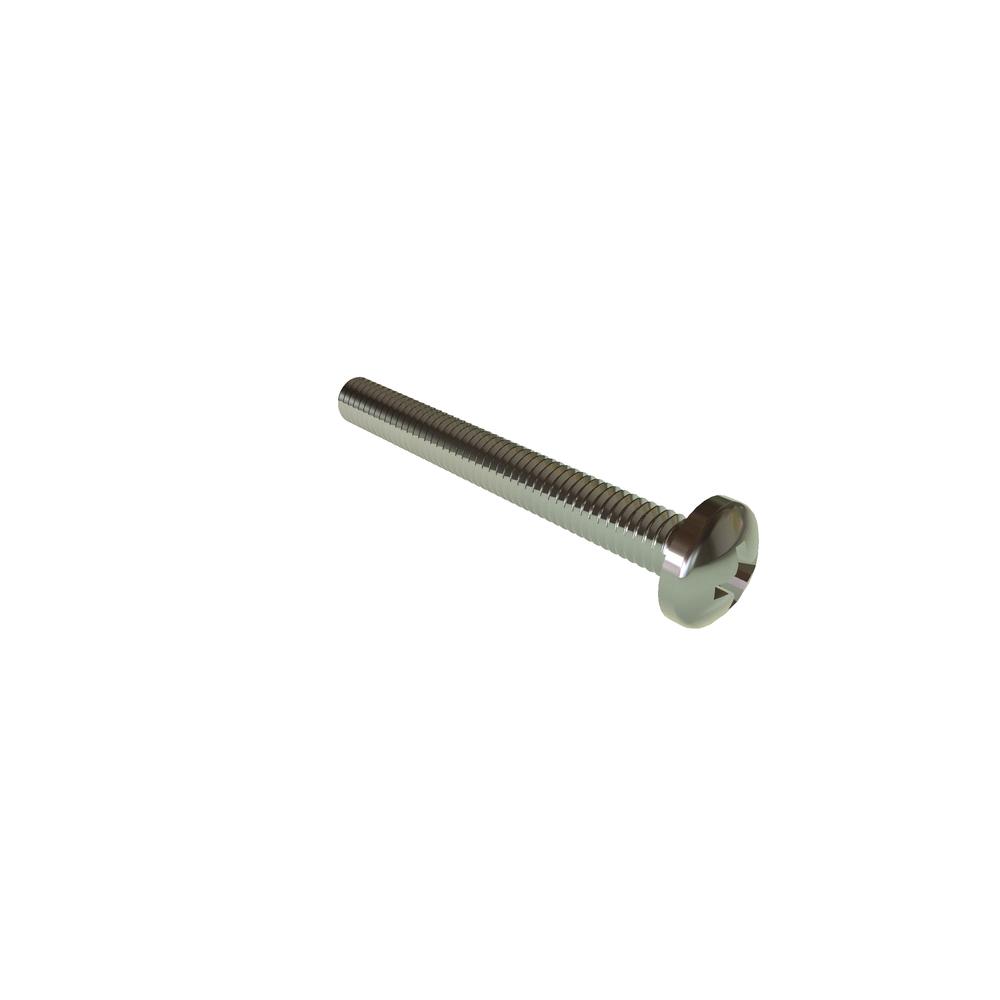

M4-.7 X 35 PHIL PAN DIN7985 SST RoHS
.4C35PPMS
| Item Id | .4C35PPMS |
| Description | M4-.7 X 35 PHIL PAN DIN7985 SST RoHS |
| Alternate Codes | 92000A238 |
| Extended Description | RoHS |
| Packaging | EA |
| Additional Industry Cross Reference | 92000A238 92000A238 |
| Body Diameter (Max.) | 4.00 mm |
| Body Diameter (Min.) | 3.43 mm |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 8.00 mm |
| Head Diameter (Min.) | 7.64 mm |
| Head Height (Max.) | 3.10 mm |
| Head Height (Min.) | 2.92 mm |
| Head Radius (Min.) | 6.50 mm |
| Head Type | Pan |
| Length | 35mm |
| Material | Stainless Steel |
| Meets (Standard) | B18.6.7M |
| Nominal Diameter | 4.00 mm |
| Recess Depth (Max.) | 2.40 mm |
| Recess Depth (Min.) | 1.90 mm |
| Recess Diameter | 4.40 mm |
| RoHS | Compliant |
| Thread Size | M4x0.7 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
