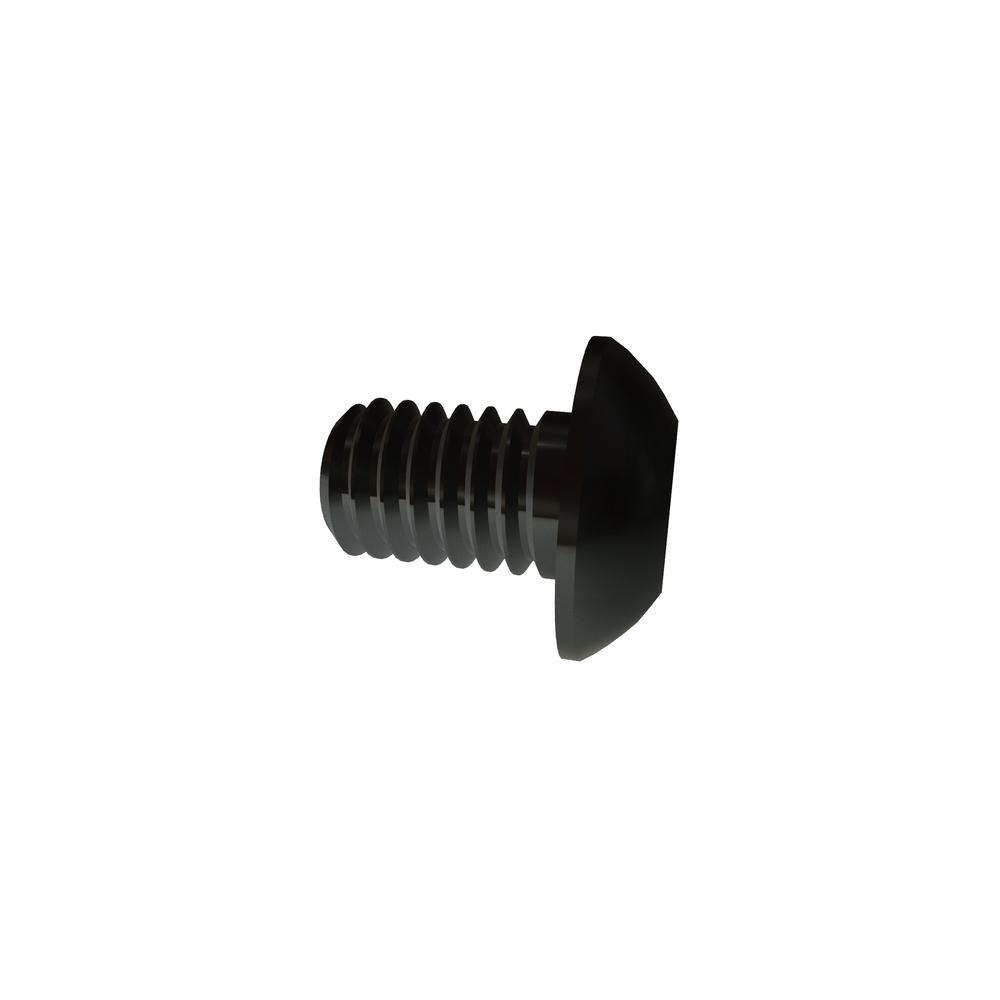

.4C6BHCAR
M4-.7 X 6 BUT SOC ALLOY ZN RoHS
Alternate Codes: N/A
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.279 | $0.147 | $0.116 | $0.107 | $0.090 | Larger Quantities |
In Stock
| Thread Size | M4x0.7 |
| Material | Alloy Steel |
| Finish | Zinc Clear |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 4 mm |
| Head Type | Button |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Min.) | 4.40 mm |
| Fillet Transition Diameter (Max.) | 4.70 mm |
| Head Side Height (Ref.) | 0.38 mm |
| Key Engagement | 1.30 mm |
| Brand | VARIED |
| Length | 6mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3.4M |
| Head Diameter (Max.) | 7.60 mm |
| Head Diameter (Min.) | 7.24 mm |
| Head Height (Max.) | 2.20 mm |
| Head Height (Min.) | 1.95 mm |
| Hex Socket Size | 2.50 mm |
