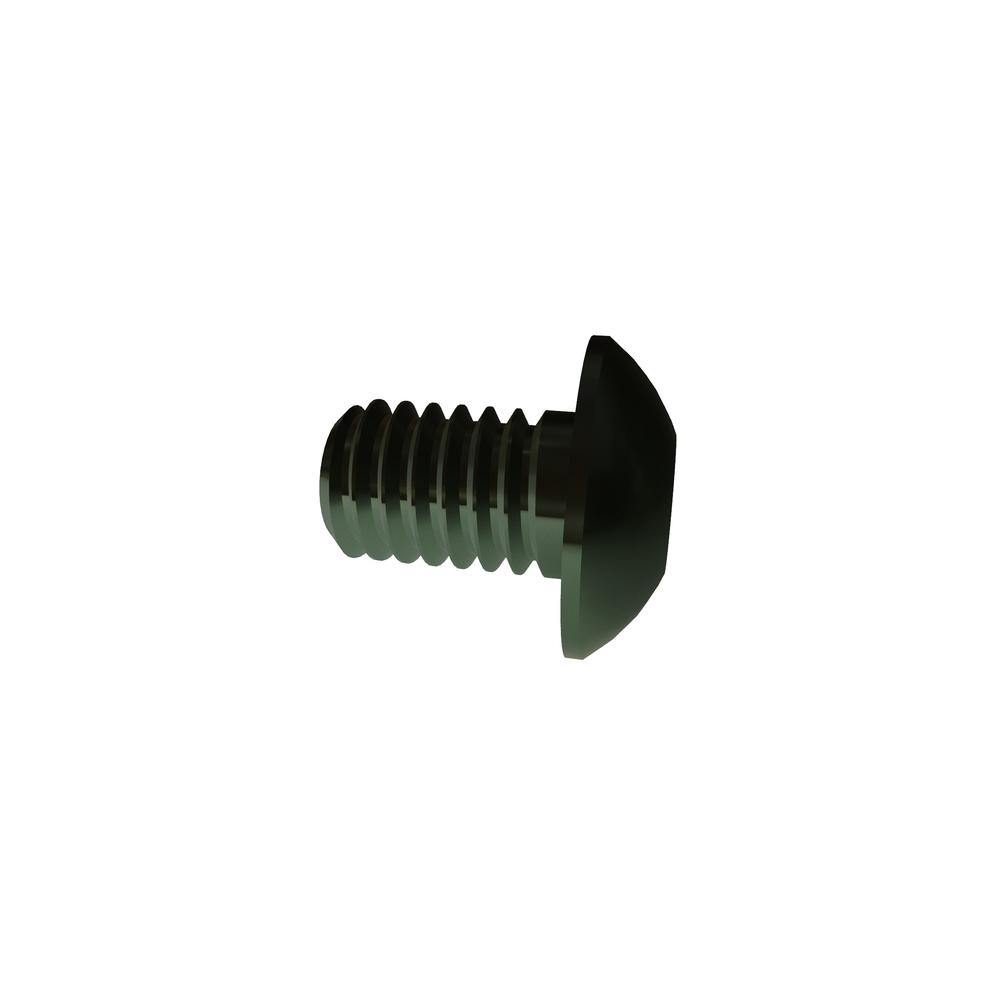

Image for reference purposes only. Actual product may vary.
.4C6BHXAR
M4-.7 X 6 BUT HD TORX ALLOY ZN CR3
Alternate Codes: N/A
ISO 7380
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 4 mm |
| Length | 6mm |
| Thread Size | M4x0.7 |
| Finish | Zinc Cr3 |
| Material | Alloy Steel |
| Head Type | Button |
| Drive Type | Torx Socket |
| Head Height (Max.) | 2.20 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Drive Size | T15 |
| Fillet Transition Diameter (Min.) | 4.40 mm |
| Fillet Transition Diameter (Max.) | 4.70 mm |
| Head Side Height (Ref.) | 0.38 mm |
| Key Engagement | 1.05 mm |
| Torx Socket Size | 3.27 mm |
| Brand | VARIED |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3.4M |
| Head Diameter (Max.) | 7.60 mm |
| Head Diameter (Min.) | 7.24 mm |
| Head Height (Min.) | 1.95 mm |
