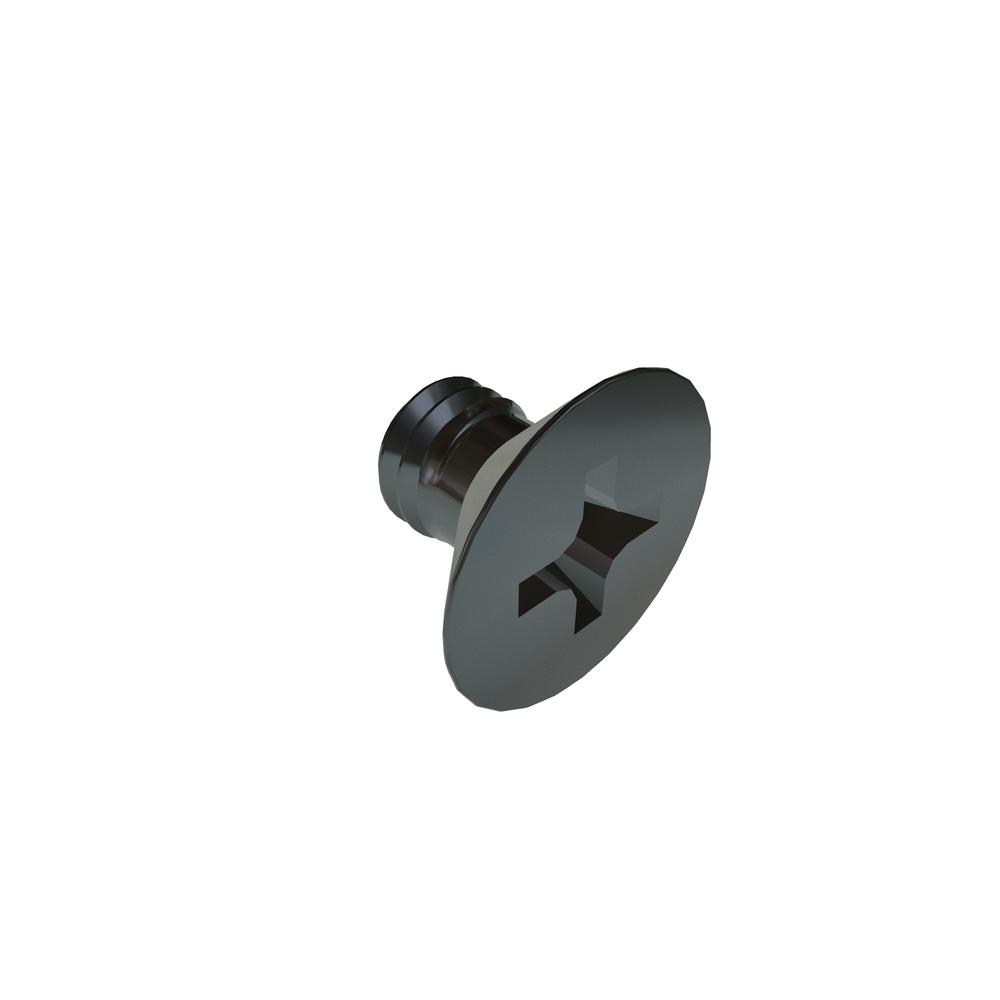

Image for reference purposes only. Actual product may vary.
.4C6PFMZR/P
M4-.7 X 6 PHIL FLAT PATCH STL ZN CR3
Alternate Codes: N/A
M4-.7 X 6 Phillips Pan Flat DIN965 Patch Steel Zinc Plated RoHS3
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 6mm |
| Thread Size | M4x0.7 |
| Finish | Zinc Cr3 |
| Drive Type | Phillips |
| Locking Element | Patchlock |
| Material | Steel |
| Brand | VARIED |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 4.00 mm |
| Head Type | Flat |
| Drive Size | 2 |
| Recess Diameter | 4.6 mm |
| Head Height | 2.70 mm |
| Recess Depth | 2.65 mm |
| Recess Width | 0.96 mm |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 8.40 mm |
| Head Diameter (Min.) | 8.04 mm |
