  • Item Id: .4C6PPM3

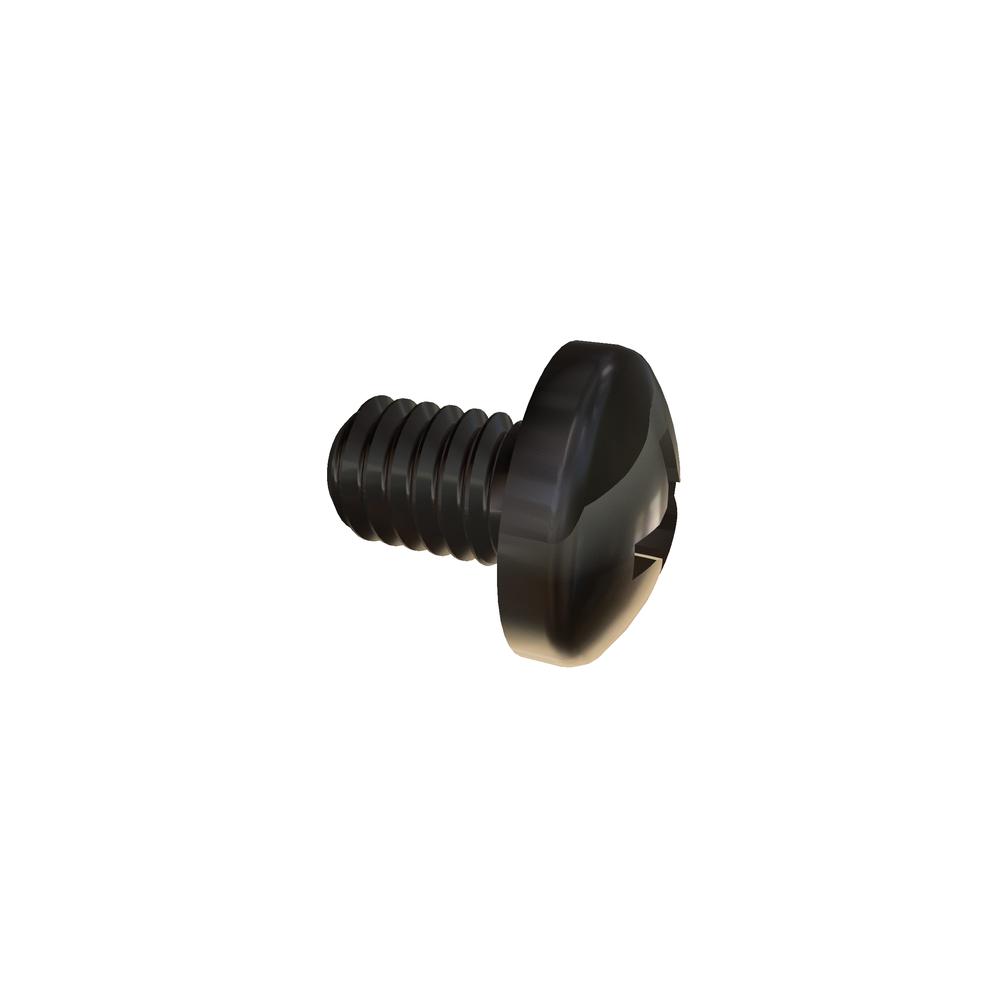

  • Description: M4-.7 X 6 PHIL PAN 316 SST
  • Alternate Codes: 90116A202
  • Quantity Discounts:
    1 to 249250 to 499500 to 9991000 to 2499Call For
    $0.170$0.102$0.085$0.070Larger Quantities
  • Extended Description:
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • Additional Industry Cross Reference90116A202
    Body Diameter (Max.)4.00 mm
    Body Diameter (Min.)3.43 mm
    BrandVARIED
    Drive Size2
    Drive TypePhillips
    FinishPlain
    Head Diameter (Max.)8.00 mm
    Head Diameter (Min.)7.64 mm
    Head Height (Max.)3.10 mm
    Head Height (Min.)2.92 mm
    Head Radius (Min.)6.50 mm
    Head TypePan
    Material316 Stainless Steel
    Meets (Standard)B18.6.7M
    Nominal Diameter4.00 mm
    Recess Depth (Max.)2.40 mm
    Recess Depth (Min.)1.90 mm
    Recess Diameter4.40 mm
    Thread SizeM4x0.7
    Thread TypeMetric Coarse
    UnitsMetric
