.4C6PPQZR

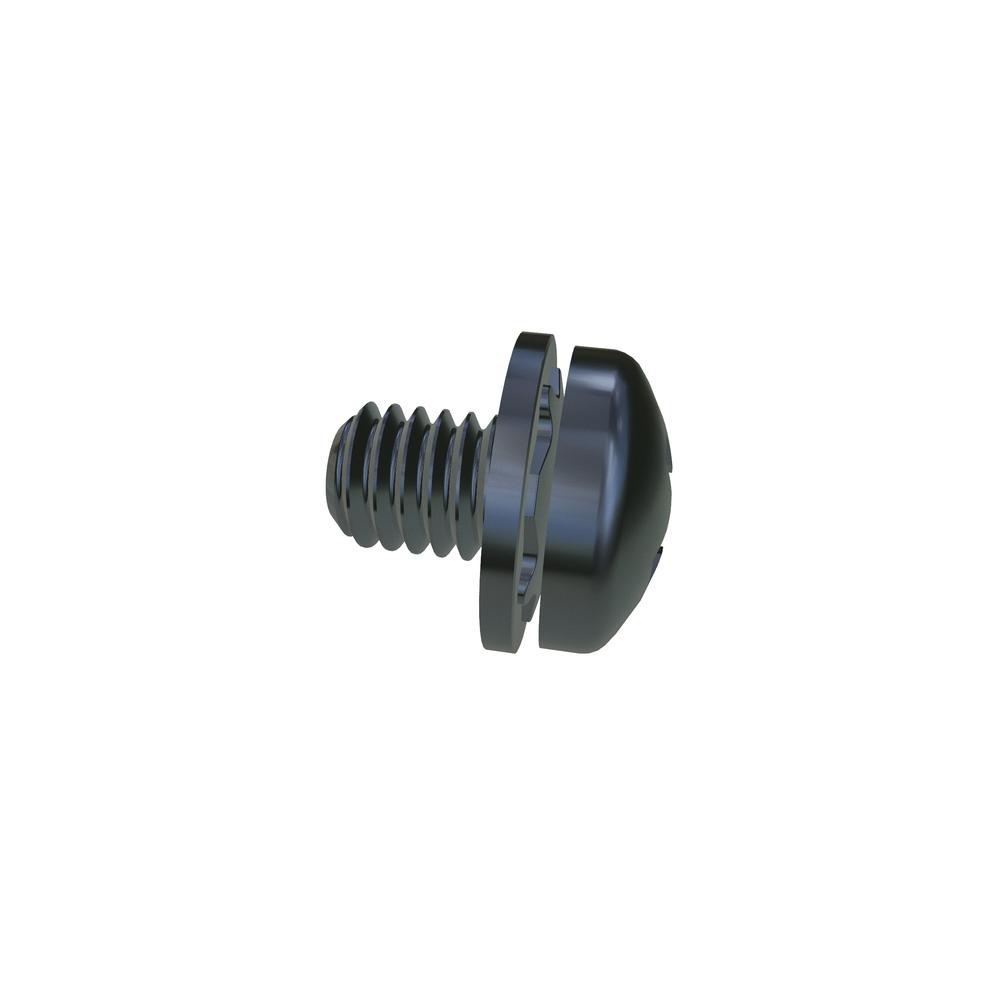

M4-.7 X 6 PH PAN SQ CONE SEMS STL ZN CR3
Alternate Codes: N/A
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.260 | $0.137 | $0.108 | $0.100 | $0.084 | Larger Quantities |
In Stock
| Thread Size | M4x0.7 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 4.00 mm |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Height (Min.) | 1.32 mm |
| Lock Washer Height (Max.) | 1.65 mm |
| Lock Washer Outside Diameter (Min.) | 8.20 mm |
| Lock Washer Outside Diameter (Max.) | 8.46 mm |
| Washer Type | Square Cone Washer |
| Drive Size | 2 |
| Penetration Depth (Min.) | 1.90 mm |
| Penetration Depth (Max.) | 2.40 mm |
| Recess Diameter | 4.40 mm |
| Head Radius (Min.) | 6.50 mm |
| Brand | VARIED |
| Length | 6mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 8.00 mm |
| Head Diameter (Min.) | 7.60 mm |
| Head Height (Max.) | 3.10 mm |
| Head Height (Min.) | 2.80 mm |
| Lock Washer Thickness (Min.) | 0.76 mm |
