  • Item Id: .4C6XPMS

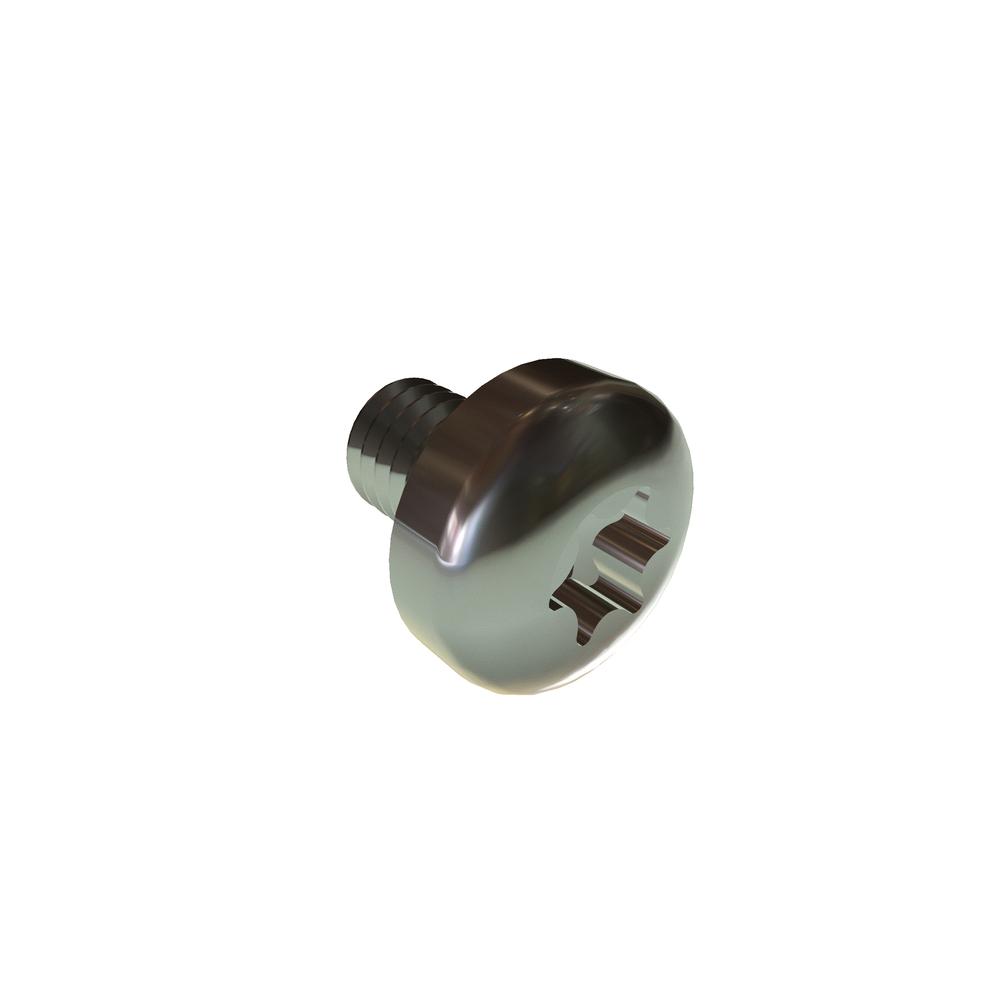

  • Description: M4-.7 X 6 TORX PAN SST RoHS
  • Alternate Codes: 90362A117
  • Quantity Discounts:
    1 to 249250 to 499500 to 9991000 to 2499Call For
    $0.219$0.132$0.110$0.090Larger Quantities
  • Extended Description:
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • Additional Industry Cross Reference90362A117
    BrandVARIED
    Drive SizeT20
    Drive TypeTorx
    FinishPlain
    Head Diameter (Max.)8.00 mm
    Head Diameter (Min.)7.64 mm
    Head Height (Max.)3.10 mm
    Head Height (Min.)2.92 mm
    Head Radius (Min.)6.50 mm
    Head TypePan
    MaterialStainless Steel
    Meets (Standard)ISO 14583
    Nominal Diameter4.00 mm
    Recess Depth (Max.)1.66 mm
    Recess Depth (Min.)1.27 mm
    Recess Diameter3.86 mm
    RoHSCompliant
    Thread SizeM4x0.7
    Thread TypeMetric Coarse
    UnitsMetric
