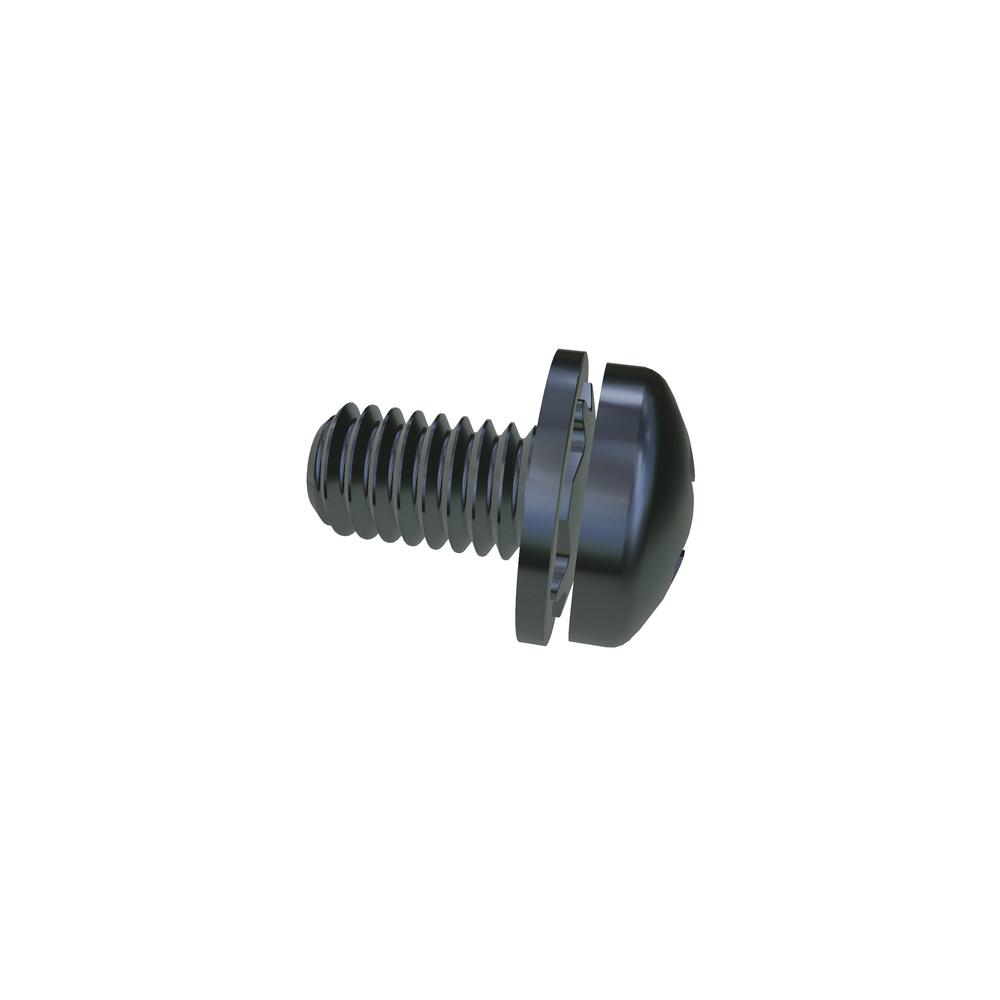

M4-.7 X 8 PH PAN SQ CONE SEMS STL ZN CR3
.4C8PPQZR
| Item Id | .4C8PPQZR |
| Description | M4-.7 X 8 PHIL PAN SQ CONE SEMS STL ZN |
| Extended Description | RoHS |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Zinc Clear |
| Head Diameter (Max.) | 8.00 mm |
| Head Diameter (Min.) | 7.60 mm |
| Head Height (Max.) | 3.10 mm |
| Head Height (Min.) | 2.80 mm |
| Head Radius (Min.) | 6.50 mm |
| Head Type | Pan |
| Length | 8mm |
| Lock Washer Height (Max.) | 1.65 mm |
| Lock Washer Height (Min.) | 1.32 mm |
| Lock Washer Outside Diameter (Max.) | 8.46 mm |
| Lock Washer Outside Diameter (Min.) | 8.20 mm |
| Lock Washer Thickness (Min.) | 0.76 mm |
| Material | Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 4.00 mm |
| Penetration Depth (Max.) | 2.40 mm |
| Penetration Depth (Min.) | 1.90 mm |
| Recess Diameter | 4.40 mm |
| RoHS | Compliant |
| Thread Size | M4x0.7 |
| Thread Type | Metric Coarse |
| Units | Metric |
| Washer Type | Square Cone Washer |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
