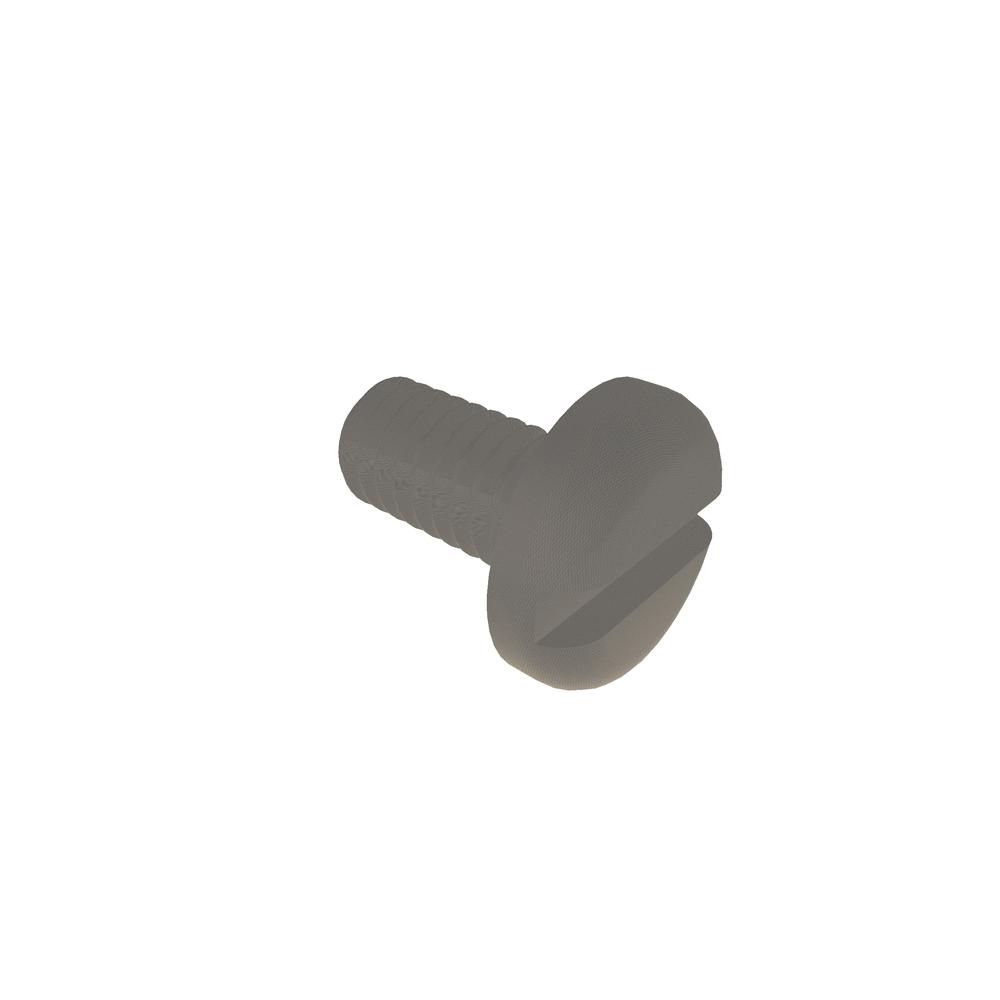

M4-.7 X 8 SLOT PAN HD NYL
.4C8SPMN
| Item Id | .4C8SPMN |
| Description | M4-.7 X 8 SLOT PAN HD NYL |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92942A816 |
| Body Diameter (Max.) | 4.00 mm |
| Body Diameter (Min.) | 3.43 mm |
| Brand | VARIED |
| Drive Type | Slotted |
| Finish | Plain |
| Head Diameter (Max.) | 8.00 mm |
| Head Diameter (Min.) | 7.60 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.20 mm |
| Head Radius (Min.) | 1.60 mm |
| Head Type | Pan |
| Length | 8mm |
| Material | Nylon |
| Meets (Standard) | B18.6.7M |
| Nominal Diameter | 4.00 mm |
| Slot Depth (Min.) | 1.00 mm |
| Slot Width (Max.) | 1.50 mm |
| Slot Width (Min.) | 1.20 mm |
| Thread Size | M4x0.7 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
