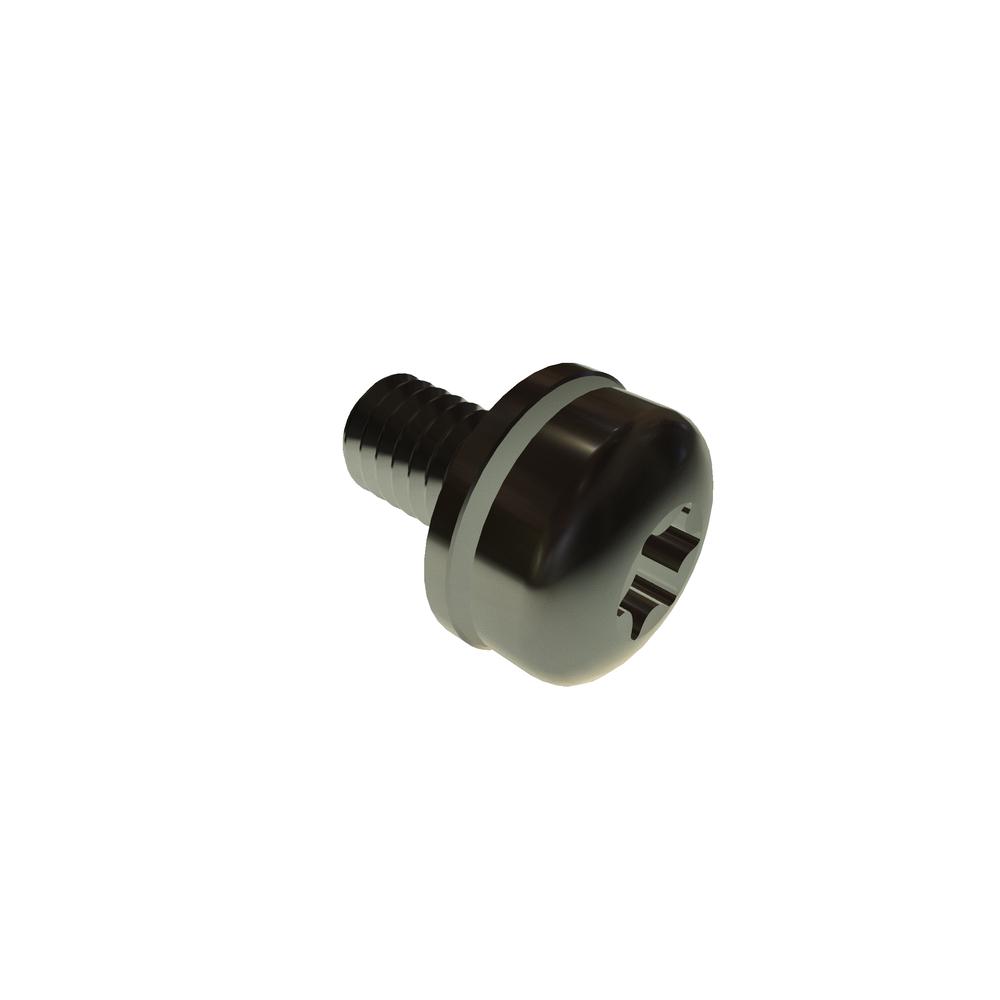

Image for reference purposes only. Actual product may vary.
.4C8XPCS/P
M4-.7 X 8 TRX PN CREST CP SEMS W/PATCH
Alternate Codes: N/A
M4-.7 X 8 Torx Pan Crest Cup Sems with Patch Stainless Steel RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.817 | $0.450 | $0.374 | $0.321 | $0.265 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 8mm |
| Thread Size | M4x0.7 |
| Finish | Plain |
| Brand | VARIED |
| Recess Diameter | 3.95 mm |
| Washer Type | Crest Cup Washer |
| Drive Type | Torx |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 4.00 mm |
| Head Type | Pan |
| Lock Washer Thickness (Max.) | 1.00 mm |
| Lock Washer Height (Min.) | 1.53 mm |
| Lock Washer Height (Max.) | 2.00 mm |
| Lock Washer Outside Diameter (Min.) | 9.40 mm |
| Lock Washer Outside Diameter (Max.) | 9.65 mm |
| Drive Size | T20 |
| Penetration Depth (Min.) | 1.27 mm |
| Penetration Depth (Max.) | 1.66 mm |
| Head Radius (Min.) | 6.50 mm |
| Self Locking Type | Patchlock |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 8.00 mm |
| Head Diameter (Min.) | 7.64 mm |
| Head Height (Max.) | 3.10 mm |
| Head Height (Min.) | 2.92 mm |
| Lock Washer Thickness (Min.) | 0.76 mm |
