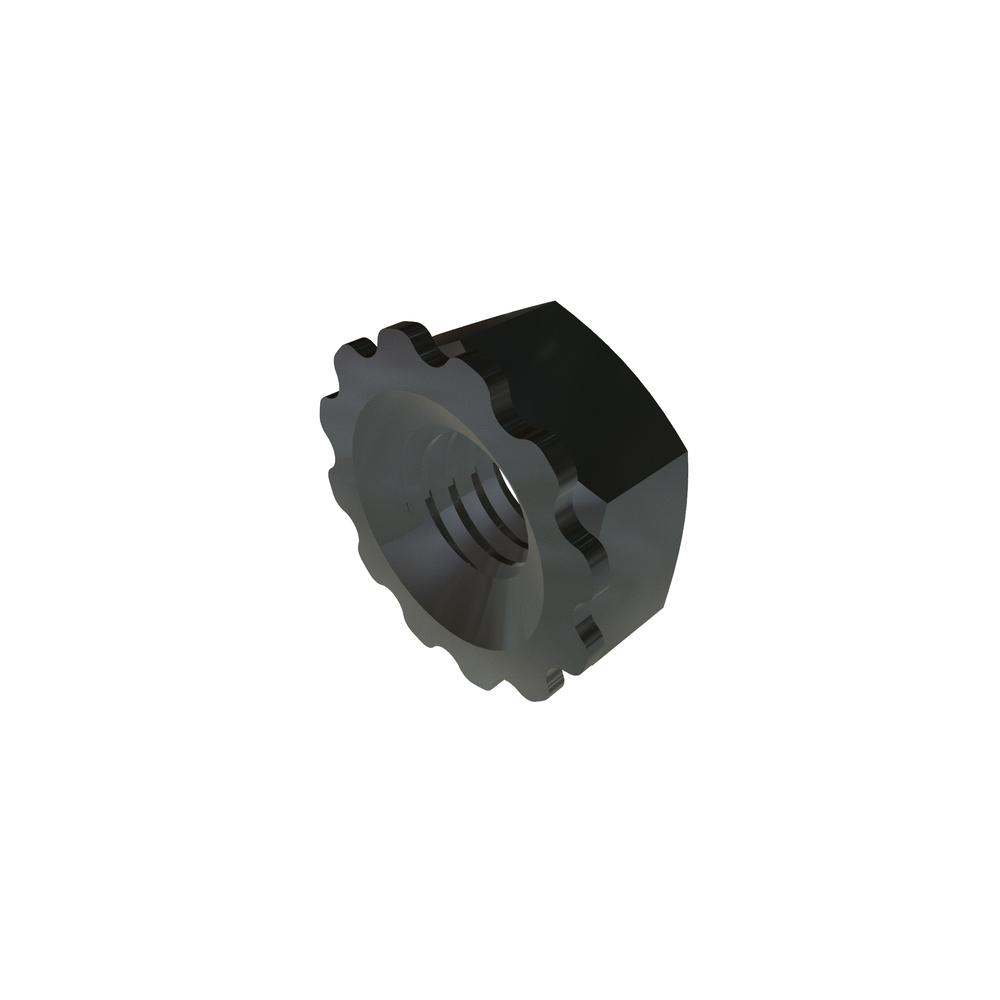

M4-.7 KEP NUT STL ZN CR3 RoHS
.4CKNTZR
| Item Id | .4CKNTZR |
| Description | M4-.7 KEP NUT STL ZN CR3 RoHS |
| Alternate Codes | .4CKNTZZ/R, 1900-0040, 53102-67000, 573-10002, 7000-0064, BN1364 M4 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 93825A120 |
| Brand | VARIED |
| Finish | Zinc Cr3 |
| Head Thickness (Max.) | 3.20 mm |
| Head Thickness (Min.) | 2.90 mm |
| Material | Steel |
| Nominal Diameter | 4.00 mm |
| RoHS | Compliant |
| Thread Size | M4x0.7 |
| Thread Type | Metric Coarse |
| Units | Metric |
| Washer Diameter (Max.) | 8.30 mm |
| Washer Diameter (Min.) | 8.00 mm |
| Width Across Flat (Max.) | 7.00 mm |
| Width Across Flat (Min.) | 6.78 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
