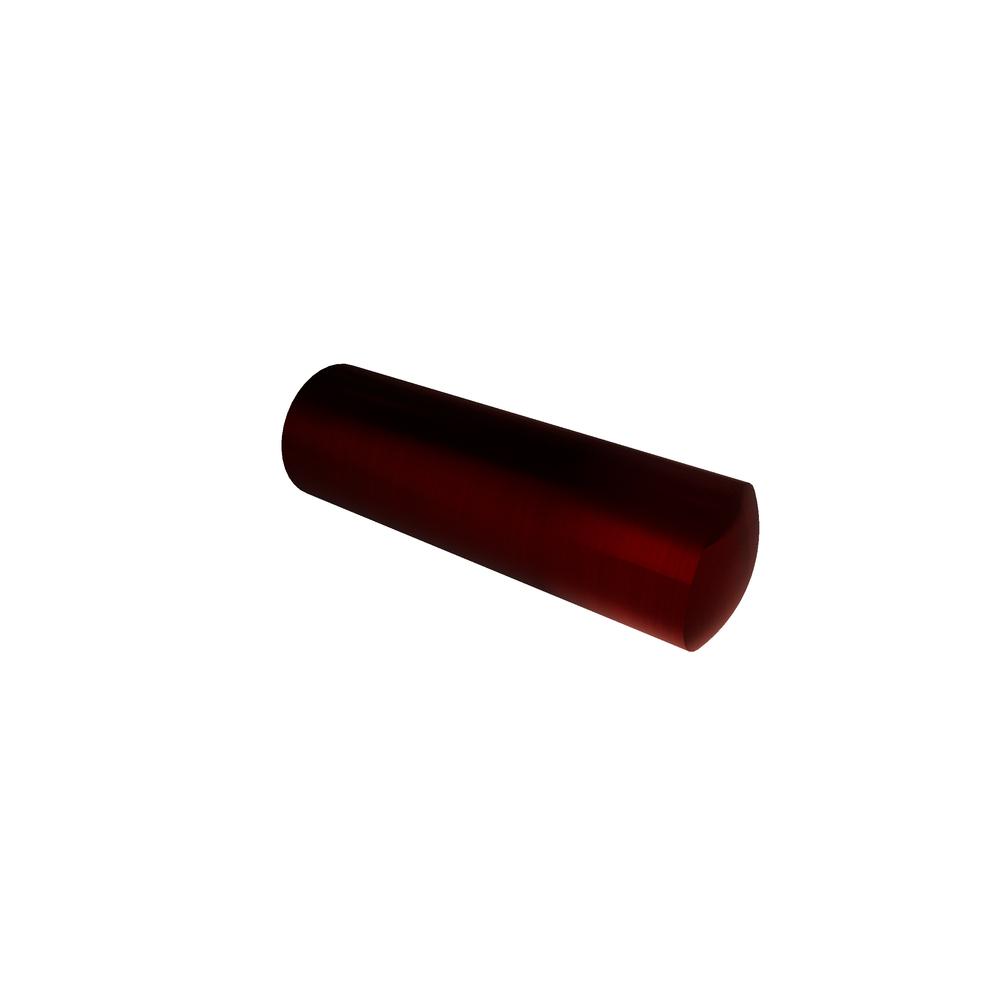

Image for reference purposes only. Actual product may vary.
.4R10DOWA
M4 X 10 DOWEL PIN ALLOY
Alternate Codes: 91595A152, DIN6325 M6
M4 X 10 Dowel Pin DIN6325 Alloy RoHS (m6 tolerance)
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs |
|---|---|---|
| $0.603 | $0.332 | $0.276 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Nominal Diameter | 4mm |
| Length | 10mm |
| Tolerance | m6 |
| Type | Press Fit |
| Brand | VARIED |
| Material | Alloy Steel |
| Units | Metric |
| Pin Diameter (Min.) | 4.004mm |
| Pin Diameter (Max.) | 4.012mm |
| Point Diameter (Min.) | 3.60 mm |
| Point Diameter (Max.) | 3.90 mm |
| Additional Industry Cross Reference | DIN6325 |
| Heat Treat | Hardened |
