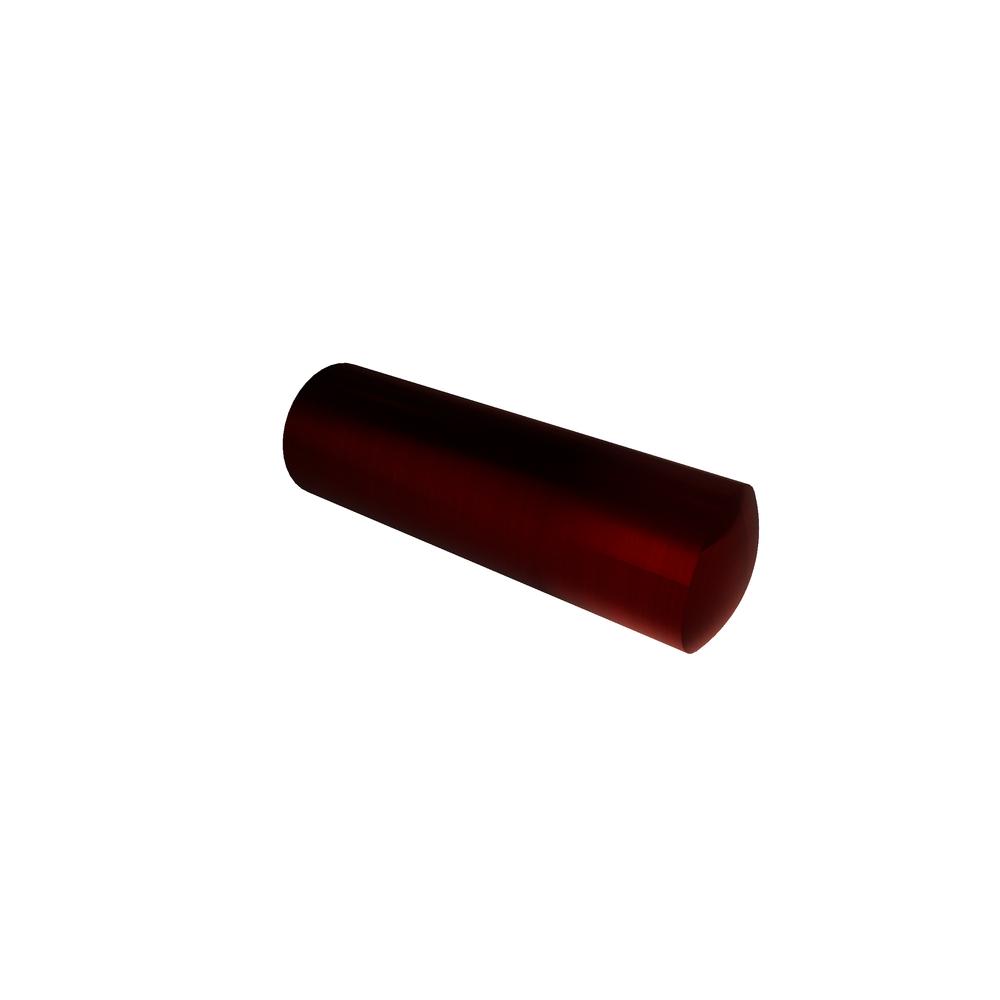

M4 X 12 DOWEL PIN ALLOY
.4R12DOWA
| Item Id | .4R12DOWA |
| Description | M4 X 12 DOWEL PIN ALLOY RoHS |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | DIN6325 |
| Brand | VARIED |
| Heat Treat | Hardened |
| Length | 12mm |
| Material | Alloy Steel |
| Nominal Diameter | 4mm |
| Pin Diameter (Max.) | 4.012mm |
| Pin Diameter (Min.) | 4.004mm |
| Point Diameter (Max.) | 3.90 mm |
| Point Diameter (Min.) | 3.60 mm |
| Tolerance | 0.187 .003 |
| Tolerance | m6 |
| Type | Press Fit |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
