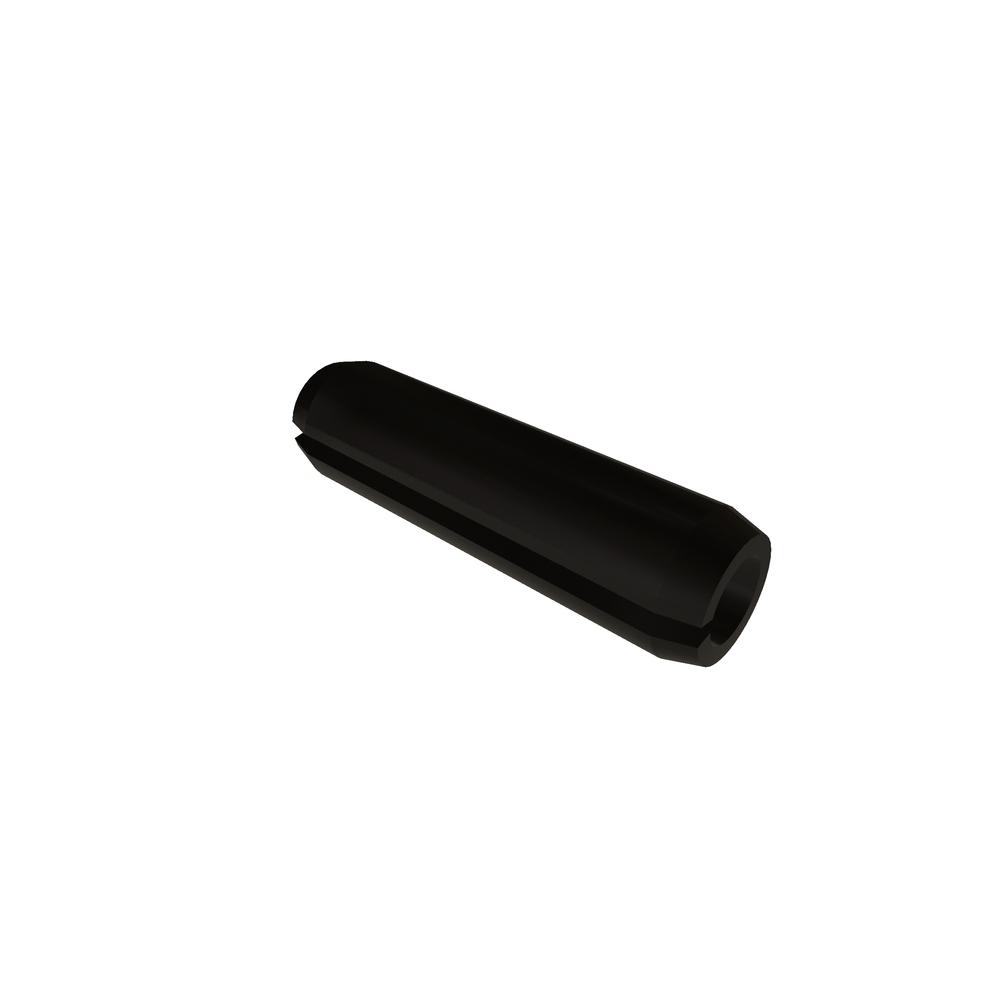

M4 X 12 ROLL PIN ALLOY RoHS
.4R12ROLA
Item Id | .4R12ROLA |
Description | M4 X 12 ROLL PIN ALLOY RoHS |
Alternate Codes | 91611A205 |
Extended Description | |
Packaging | EA |
Additional Industry Cross Reference | 91611A205 |
Brand | VARIED |
Chamfer Diameter | 3.9 mm |
Chamfer Length (Max.) | 1.2 mm |
Chamfer Length (Min.) | 0.3 mm |
Finish | Plain |
Material | Alloy Steel |
Nominal Diameter | 4 mm |
Pin Diameter (Max.) | 4.3 mm |
Pin Diameter (Min.) | 4.16 mm |
Recommended Hole Size (Max.) | 4.12 mm |
Recommended Hole Size (Min.) | 4 mm |
Units | Metric |
Wall Thickness | 0.8 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
