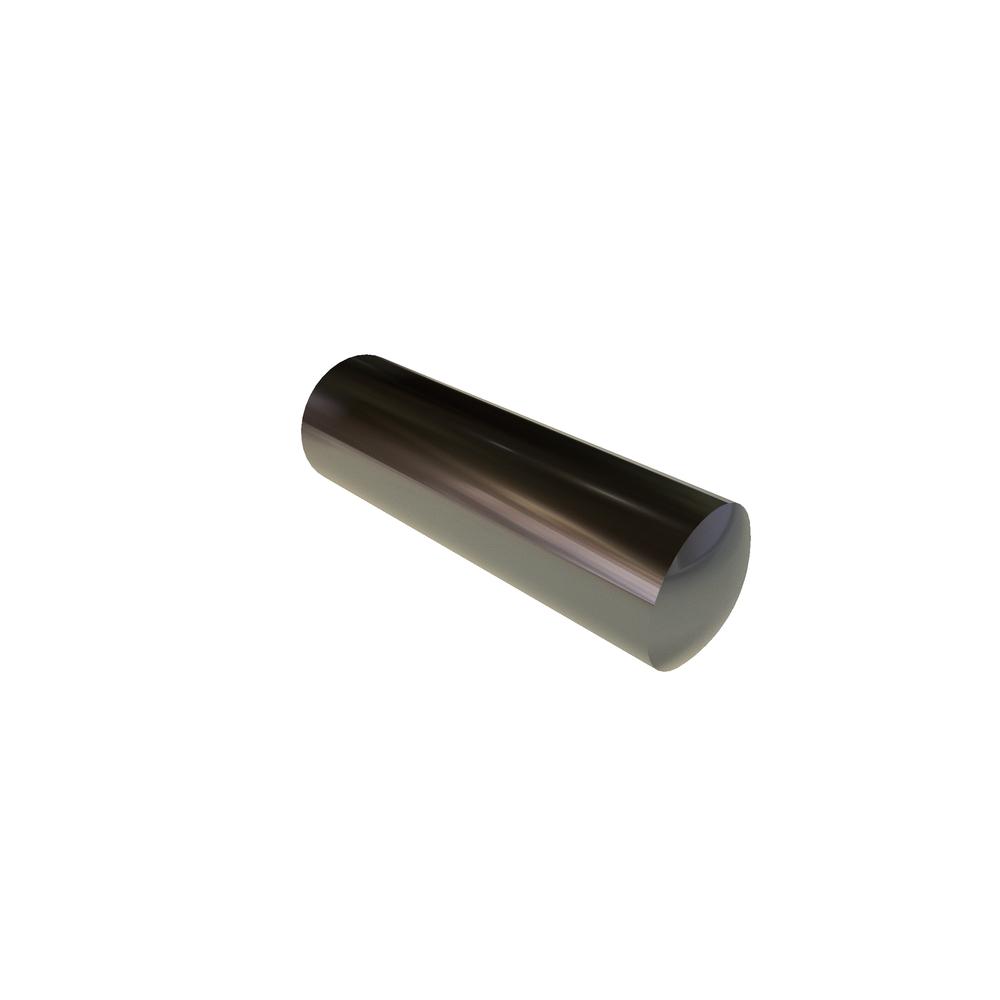

M4 X 14 DOWEL PIN DIN7-m6 SST RoHS
.4R14DOWS/M6
Item Id | .4R14DOWS/M6 |
Description | M4 X 14 DOWEL PIN DIN7-m6 SST RoHS |
Alternate Codes | 91585A450 |
Extended Description | "length of pin does not include the crowns, only the length that conforms to the diameter" |
Packaging | EA |
Additional Industry Cross Reference | DIN7 91585A450 |
Brand | VARIED |
Corner radius | 0.40 mm |
Heat Treat | Unhardened |
Length | 14mm |
Material | 303 Stainless Steel |
Nominal Diameter | 4mm |
Pin Diameter (Max.) | 4.012mm |
Pin Diameter (Min.) | 4.004mm |
Point Diameter | 3.9 mm |
RoHS | Compliant |
Tolerance | 0.588 0.005in |
Tolerance | m6 |
Type | Press Fit |
Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
