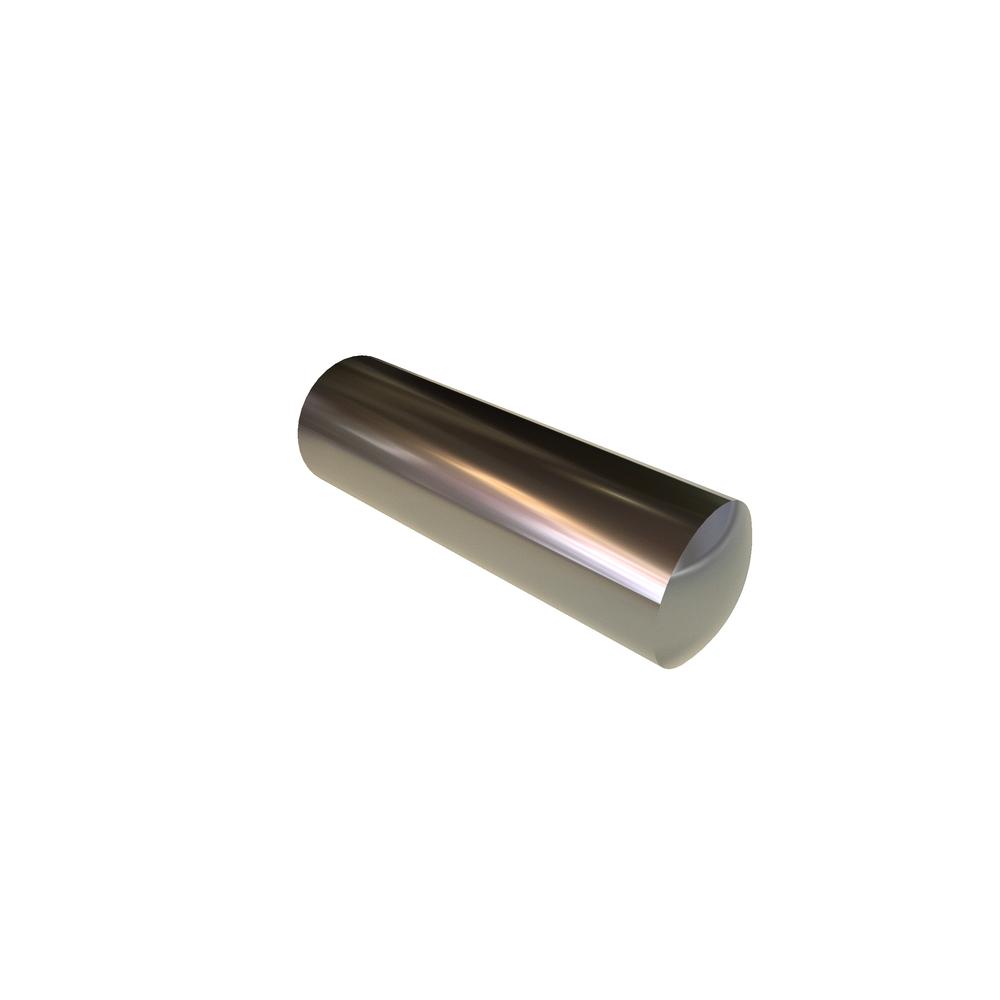

Image for reference purposes only. Actual product may vary.
.4R16DOWS/M6
M4 X 16 DOWEL PIN SST RoHS M6 TOL
Alternate Codes: 91585A454
flat ends; measurement is overall length of pin
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.639 | $0.407 | $0.373 | $0.344 | $0.291 | Larger Quantities |
In Stock
Maximum stock already in cart
| Nominal Diameter | 4mm |
| Length | 16mm |
| Tolerance | m6 |
| Type | Press Fit |
| Brand | VARIED |
| Material | 300 Stainless Steel |
| Units | Metric |
| Corner radius | 0.40 mm |
| Pin Diameter (Min.) | 4.004mm |
| Pin Diameter (Max.) | 4.012mm |
| Point Diameter | 3.9 mm |
| Additional Industry Cross Reference | ISO 2338 91585A454 |
| RoHS | Compliant |
| Heat Treat | Unhardened |
