.4R20DOWS

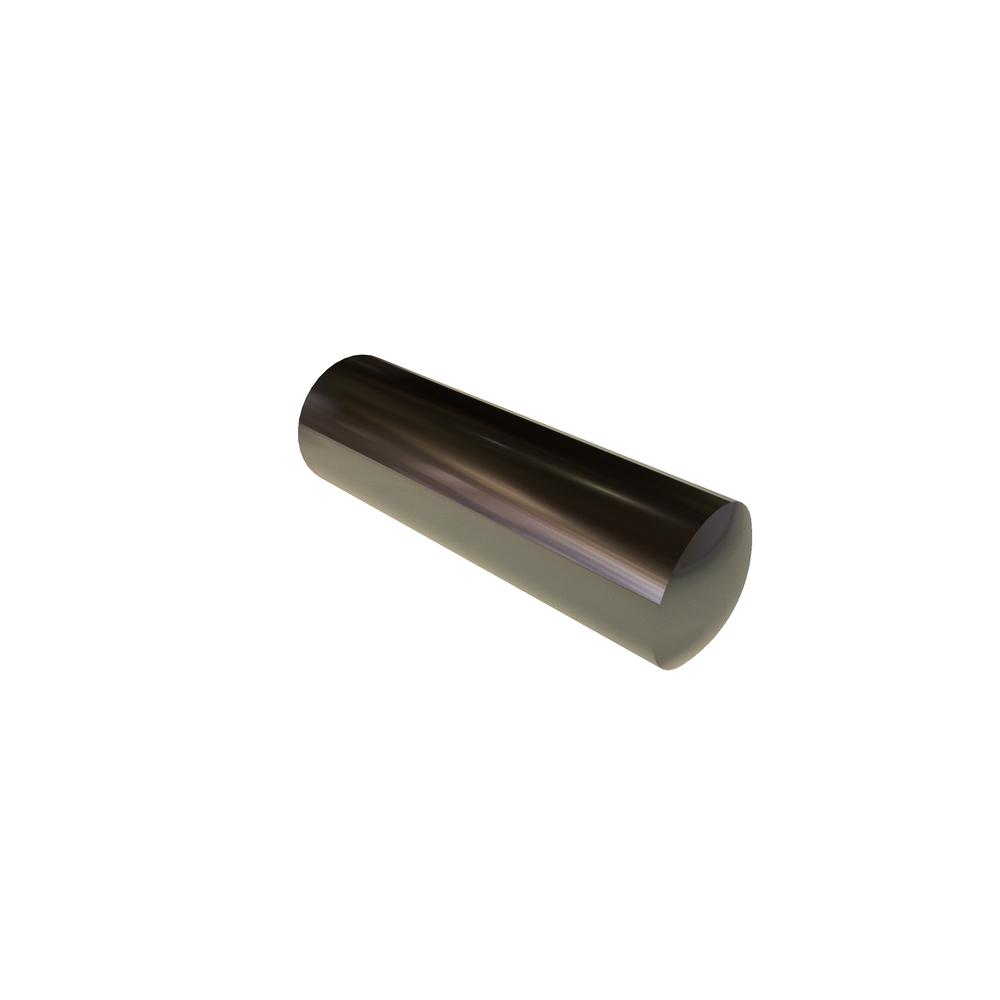

M4 X 20 DOWEL PIN SST RoHS
Alternate Codes: N/A
flat ends; measurement is overall length of pin
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.629 | $0.346 | $0.288 | $0.247 | $0.204 | Larger Quantities |
In Stock
| Material | 300 Stainless Steel |
| Units | Metric |
| Nominal Diameter | 4mm |
| Corner radius | 0.40 mm |
| Pin Diameter (Min.) | 3.982mm |
| Pin Diameter (Max.) | 4.000mm |
| Point Diameter | 3.9 mm |
| Brand | VARIED |
| Type | Slip Fit |
| Additional Industry Cross Reference | ISO2338 |
| Length | 20mm |
| RoHS | Compliant |
| Heat Treat | Unhardened |
| Tolerance | h8 |
