.5C10HFBWB

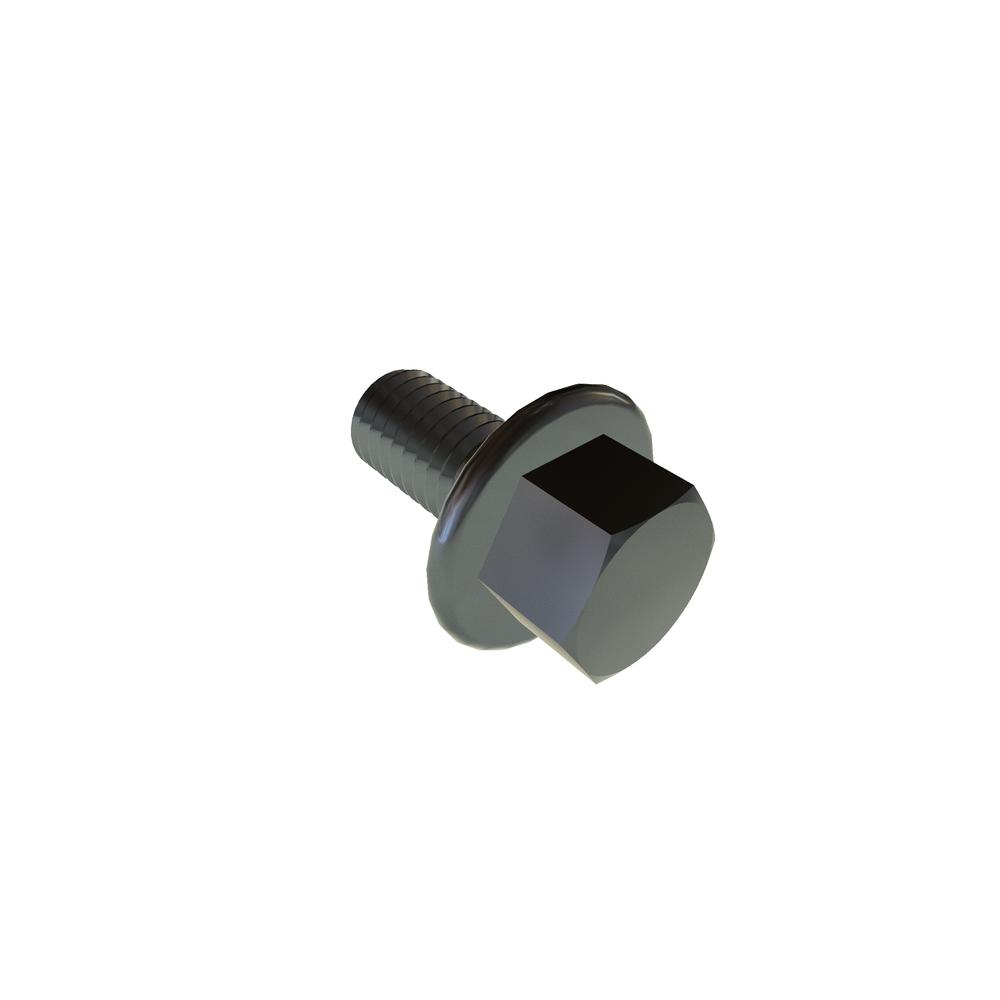

M5-.8 X 10 HX FLANGE BOLT 8.8 BLK RoHS
Alternate Codes: N/A
RoHS
Pricing per Unit
| 1-99 pcs |
|---|
| $0.766 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M5x0.8 |
| Material | Steel |
| Finish | Black Oxide |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 5.00 mm |
| Head Type | Hex Flange Bolt |
| Grade | 8.8 |
| Total Shank Diameter (Min.) | 4.82 mm |
| Total Shank Diameter (Max.) | 5.00 mm |
| Flange Diameter (Max.) | 11.40 mm |
| Wrenching Height (Min.) | 2.30 mm |
| Brand | VARIED |
| Type | Flange Bolt |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.2.3.4M |
| Head Height (Max.) | 5.60 mm |
| Width Across Flat (Max.) | 7.00 mm |
| Width Across Flat (Min.) | 6.64 mm |
| Thread Length | 7.6 mm |
| Total Length | 10mm |
