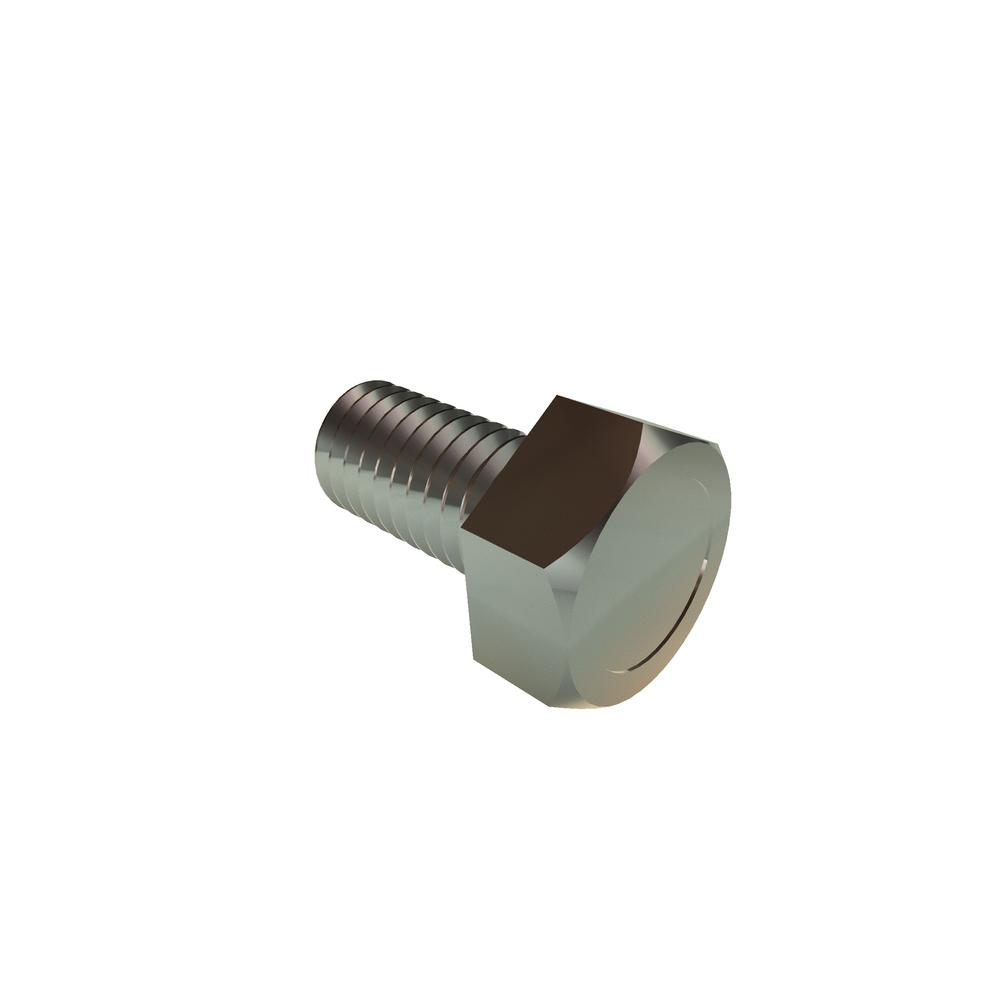

Image for reference purposes only. Actual product may vary.
.5C10HHDS
M5-.8 X 10 HX HD SST RoHS
Alternate Codes: N/A
M5-.8 X 10 Hex Head Full Thread DIN933 Stainless Steel RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Thread Size | M5x0.8 |
| Finish | Plain |
| Total Length | 10mm |
| Material | Stainless Steel |
| Brand | VARIED |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 5.00 mm |
| Head Type | Hex |
| Body Diameter (Min.) | 4.36 mm |
| Additional Industry Cross Reference | 91287A121 |
| RoHS | Compliant |
| Body Diameter (Max.) | 5.00 mm |
| Head Height (Max.) | 3.80 mm |
| Head Height (Min.) | 3.30 mm |
| Width Across Flat (Max.) | 8.00 mm |
| Width Across Flat (Min.) | 7.78 mm |
