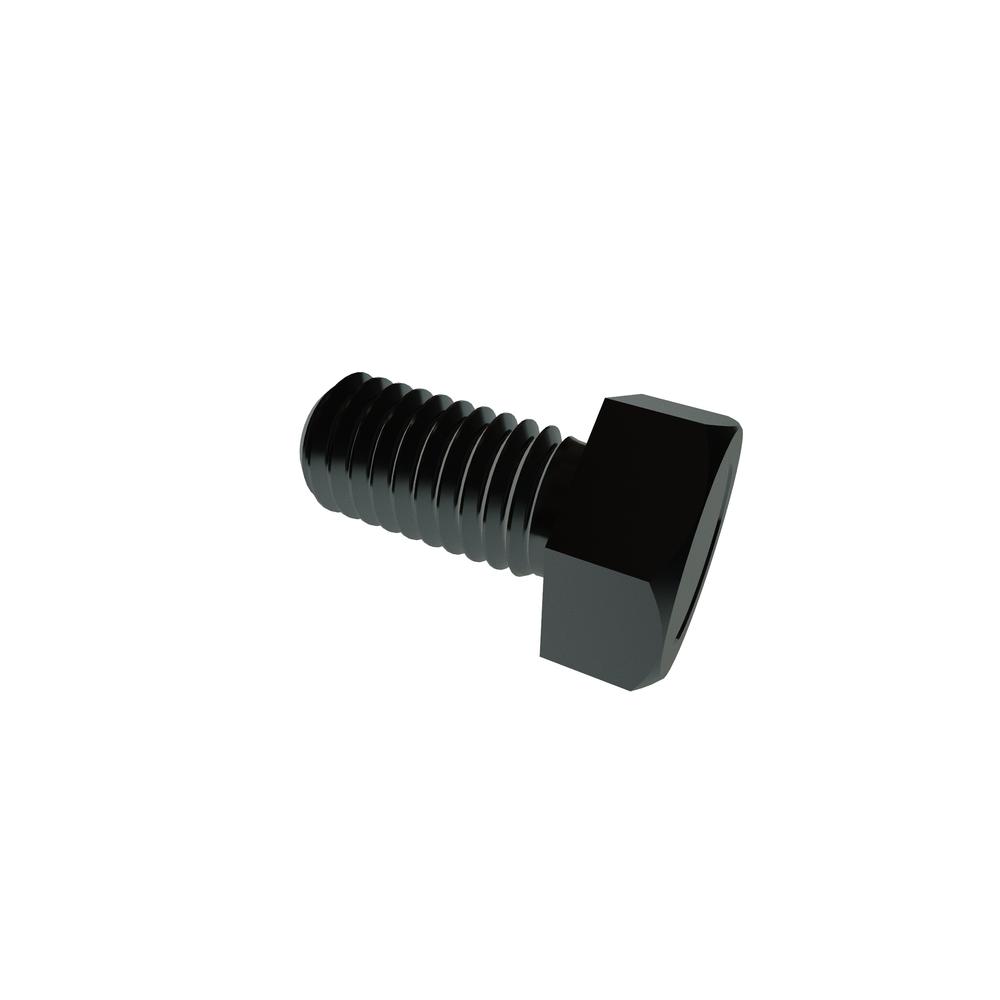

.5C10HHDWR
M5-.8 X 10 HX HD 8.8 ZN CR3
Alternate Codes: N/A
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.188 | $0.113 | $0.094 | $0.077 | $0.068 | Larger Quantities |
In Stock
| Thread Size | M5x0.8 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 5.00 mm |
| Head Type | Hex |
| Body Diameter (Min.) | 4.36 mm |
| Grade | 8.8 |
| Brand | VARIED |
| Additional Industry Cross Reference | 91280A222 |
| RoHS | Compliant |
| Body Diameter (Max.) | 5.00 mm |
| Head Height (Max.) | 3.80 mm |
| Head Height (Min.) | 3.30 mm |
| Width Across Flat (Max.) | 8.00 mm |
| Width Across Flat (Min.) | 7.78 mm |
| Total Length | 10mm |
