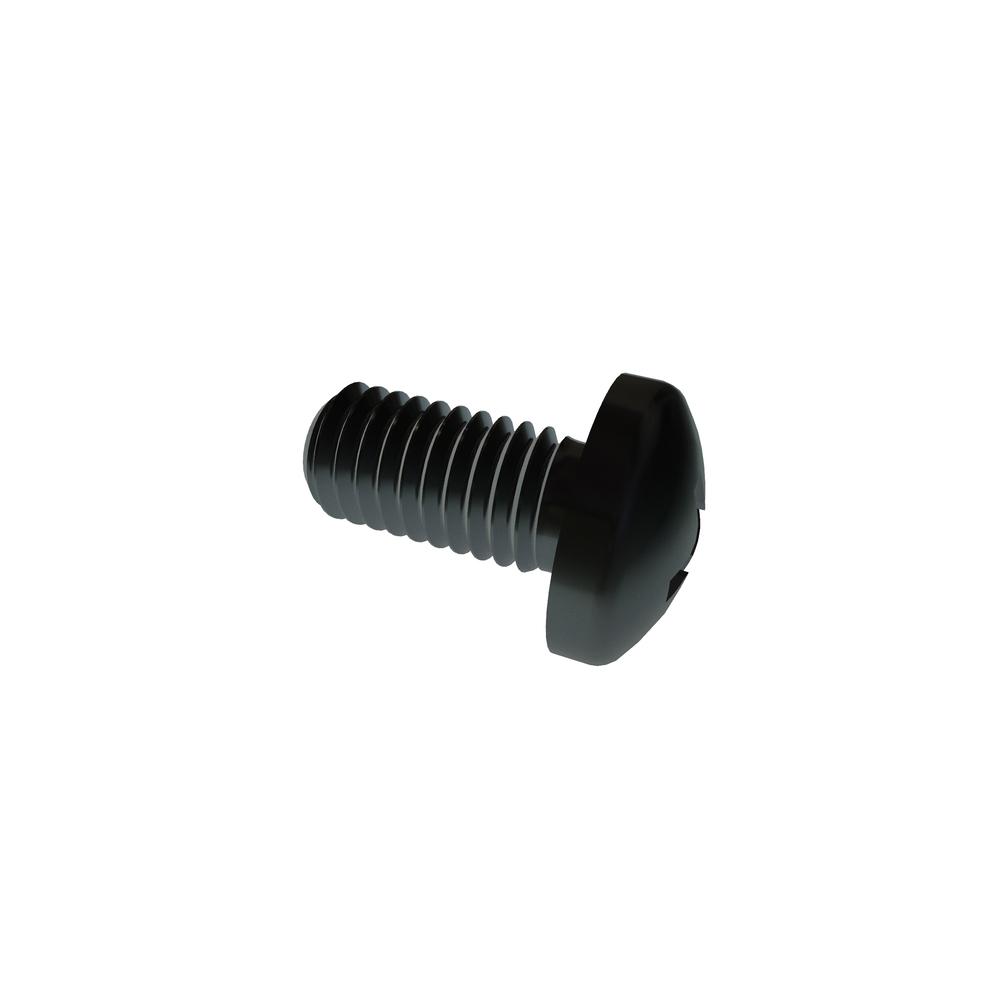

M5-.8 X 10 PH PAN STL ZN CR3
.5C10PPMZR
| Item Id | .5C10PPMZR |
| Description | M5-.8 X 10 PHIL PAN STL ZN CR3 RoHS |
| Alternate Codes | .5C10PPMZZ/R, 0301-0229, 60157, 7323-5010, 92005A320, BN384 M5X10 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92005A320 92005A320 |
| Body Diameter (Max.) | 5.00 mm |
| Body Diameter (Min.) | 4.36 mm |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 9.50 mm |
| Head Diameter (Min.) | 9.14 mm |
| Head Height (Max.) | 3.70 mm |
| Head Height (Min.) | 3.52 mm |
| Head Radius (Min.) | 8.00 mm |
| Head Type | Pan |
| Material | Steel |
| Meets (Standard) | B18.6.7M |
| Nominal Diameter | 5.00 mm |
| Recess Depth (Max.) | 2.90 mm |
| Recess Depth (Min.) | 2.40 mm |
| Recess Diameter | 4.90 mm |
| RoHS | Compliant |
| Thread Size | M5x0.8 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
