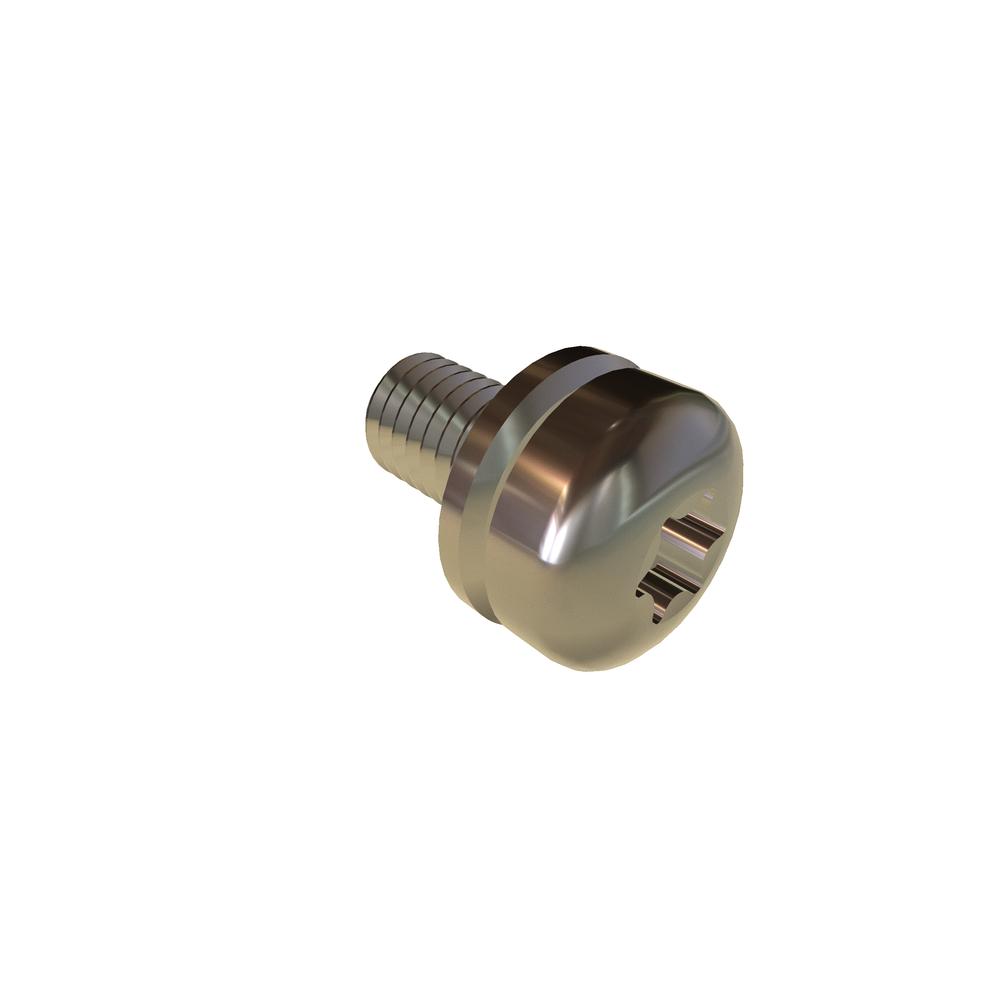

Image for reference purposes only. Actual product may vary.
.5C10XPCS
M5-.8 X 10 TORX PAN CREST CUP SEMS SST
Alternate Codes: N/A
M5-.8 X 10 Torx Pan Head Crest Cup Sems Stainless Steel RoHS
Pricing per Unit
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 10mm |
| Thread Size | M5x0.8 |
| Finish | Plain |
| Brand | VARIED |
| Recess Diameter | 4.43 mm |
| Washer Type | Crest Cup Washer |
| Drive Type | Torx |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 5.00 mm |
| Head Type | Pan |
| Lock Washer Thickness (Max.) | 1.00 mm |
| Lock Washer Height (Min.) | 1.53 mm |
| Lock Washer Height (Max.) | 2.00 mm |
| Lock Washer Outside Diameter (Min.) | 11.00 mm |
| Lock Washer Outside Diameter (Max.) | 11.33 mm |
| Drive Size | T25 |
| Penetration Depth (Min.) | 1.52 mm |
| Penetration Depth (Max.) | 1.91 mm |
| Head Radius (Min.) | 8.00 mm |
| Meets (Standard) | ISO 14583 |
| Head Diameter (Max.) | 9.50 mm |
| Head Diameter (Min.) | 9.14 mm |
| Head Height (Max.) | 3.70 mm |
| Head Height (Min.) | 3.52 mm |
| Lock Washer Thickness (Min.) | 0.76 mm |
