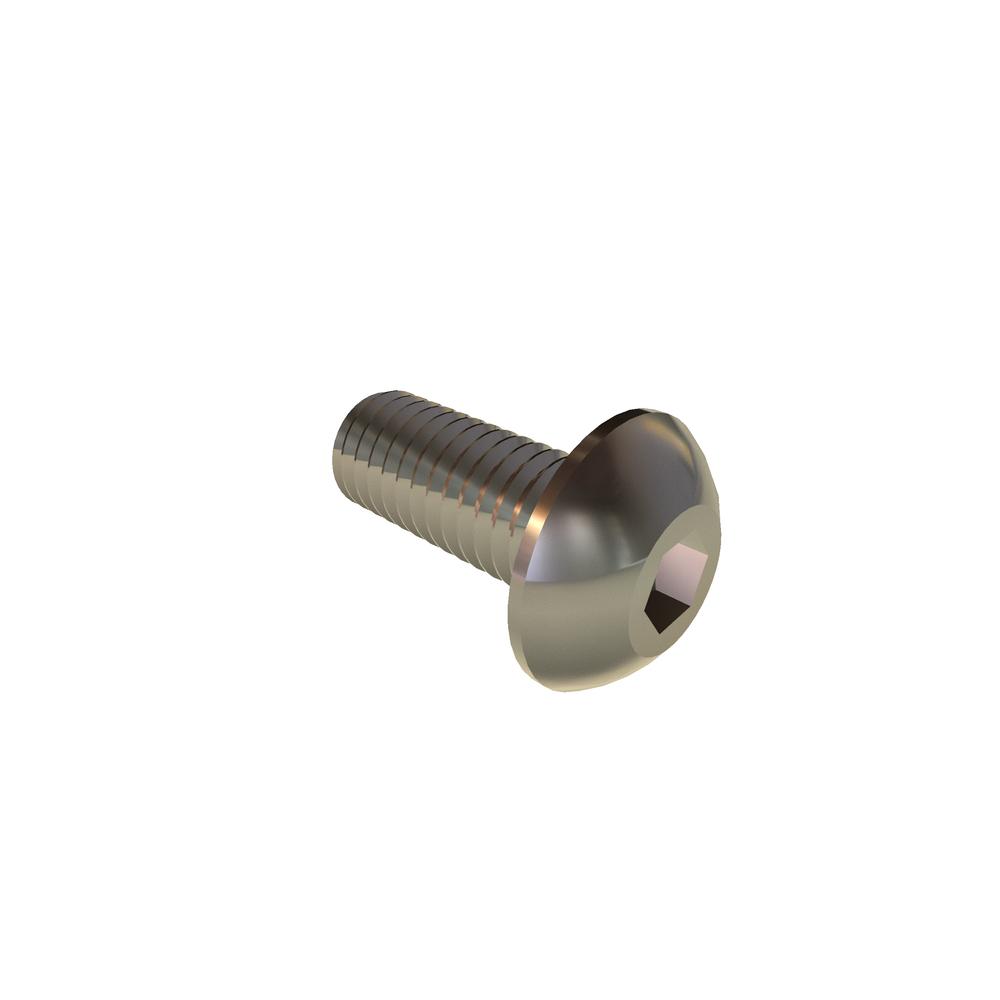

Image for reference purposes only. Actual product may vary.
.5C12BHCSS
M5-.8 X 12 BUT SOC SST RoHS SI PLT
Alternate Codes: N/A
M5-.8 X 12 Button Socket Head Stainless Steel Silver Plated RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 5 mm |
| Length | 12mm |
| Thread Size | M5x0.8 |
| Finish | Silver Plated |
| Material | Stainless Steel |
| Head Type | Button |
| Drive Type | Hex Socket |
| Head Height (Max.) | 2.75 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Fillet Transition Diameter (Min.) | 5.40 mm |
| Fillet Transition Diameter (Max.) | 5.70 mm |
| Head Side Height (Ref.) | 0.50 mm |
| Key Engagement | 1.56 mm |
| Brand | VARIED |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3.4M |
| Head Diameter (Max.) | 9.50 mm |
| Head Diameter (Min.) | 9.14 mm |
| Head Height (Min.) | 2.50 mm |
| Hex Socket Size | 3.00 mm |
