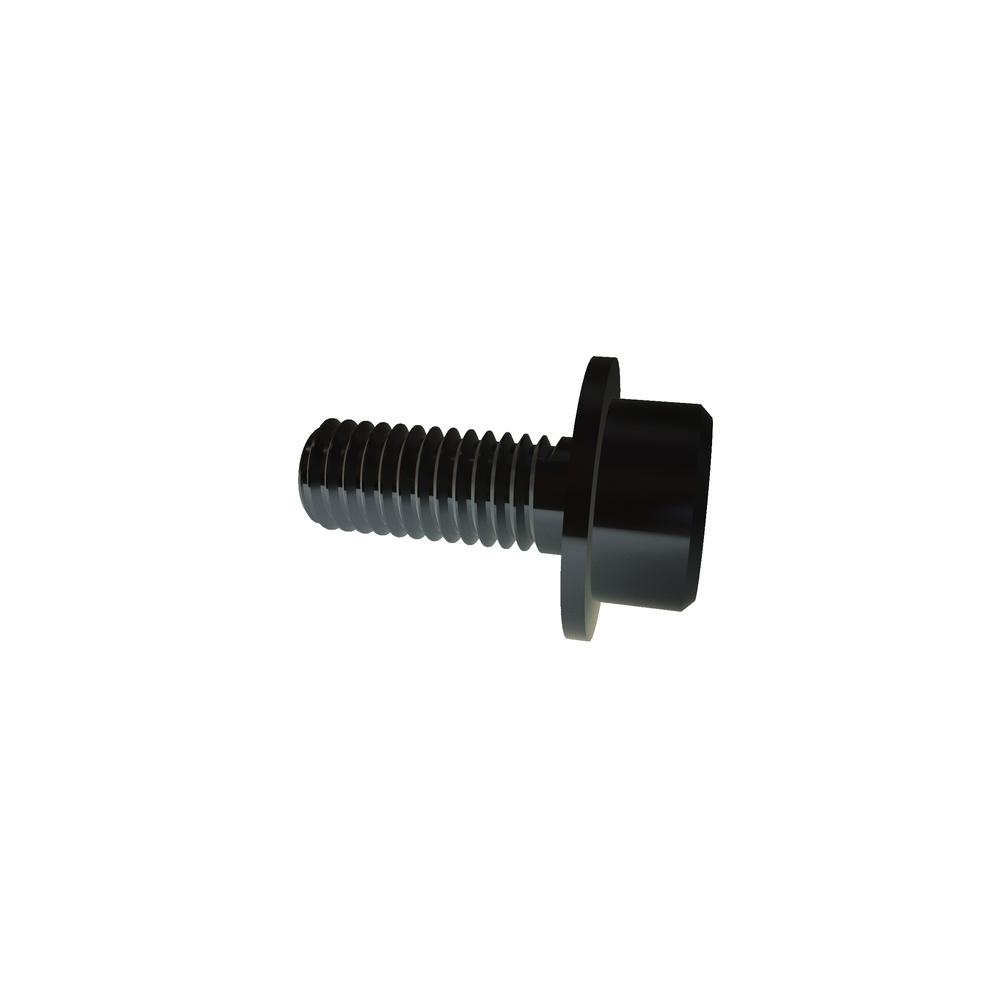

M5-.8 X 12 FLNG SOC 12.9 ALLOY RoHS
.5C12FLSA
| Item Id | .5C12FLSA |
| Description | M5-.8 X 12 FLNG SOC 12.9 ALLOY RoHS |
| Alternate Codes | 92235A210 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92235A210 |
| Body Diameter (Max.) | 5.00 mm |
| Brand | VARIED |
| Drive Type | Hex Socket |
| Finish | Plain |
| Flange Diameter (Max.) | 11.80 mm |
| Flange Diameter (Min.) | 11.10 mm |
| Flange Thickness (Max.) | 1.00 mm |
| Flange Thickness (Min.) | 0.80 mm |
| Head Diameter (Max.) | 8.50 mm |
| Head Diameter (Min.) | 8.27 mm |
| Head Height (Max.) | 5.00 mm |
| Head Height (Min.) | 4.86 mm |
| Head Type | Flanged head |
| Hex Socket Size | 4.00 mm |
| Key Engagement (Min.) | 2.50 mm |
| Length | 12mm |
| Material | Alloy Steel |
| Meets (Standard) | ASME B18.3.1M |
| Thread Size | M5x0.8 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
