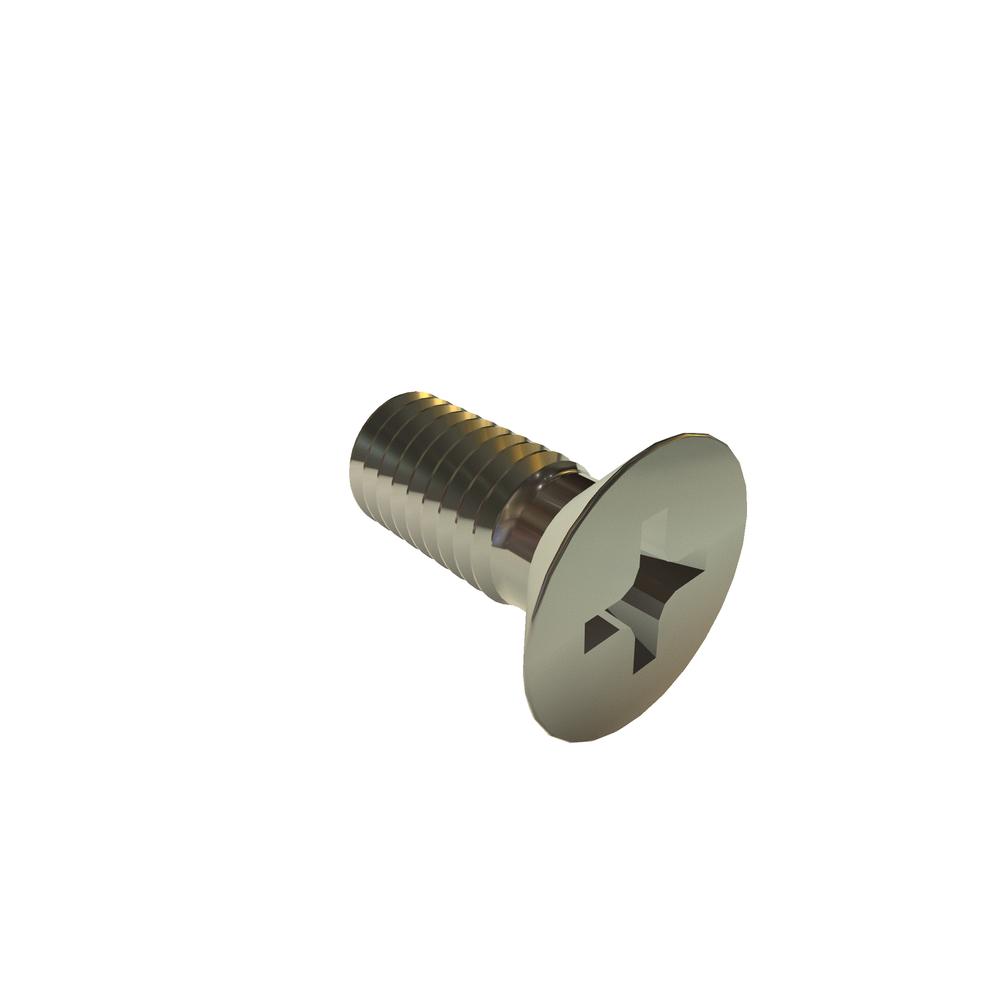

Image for reference purposes only. Actual product may vary.
.5C12PFMS
M5-.8 X 12 PHIL FLAT SST RoHS
Alternate Codes: N/A
M5-.8 X 12 Phillips Flat Head DIN965 Stainless Steel RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.252 | $0.132 | $0.105 | $0.097 | $0.081 | Larger Quantities |
Out of stock
| Thread Size | M5x0.8 |
| Length | 12mm |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Finish | Plain |
| Brand | VARIED |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 5.00 mm |
| Head Type | Flat |
| Drive Size | 2 |
| Recess Diameter | 5.06 mm |
| Head Height | 2.70 mm |
| Recess Depth | 3.25 mm |
| Recess Width | 1.04 mm |
| Additional Industry Cross Reference | 92010A322 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 9.30 mm |
| Head Diameter (Min.) | 8.94 mm |
