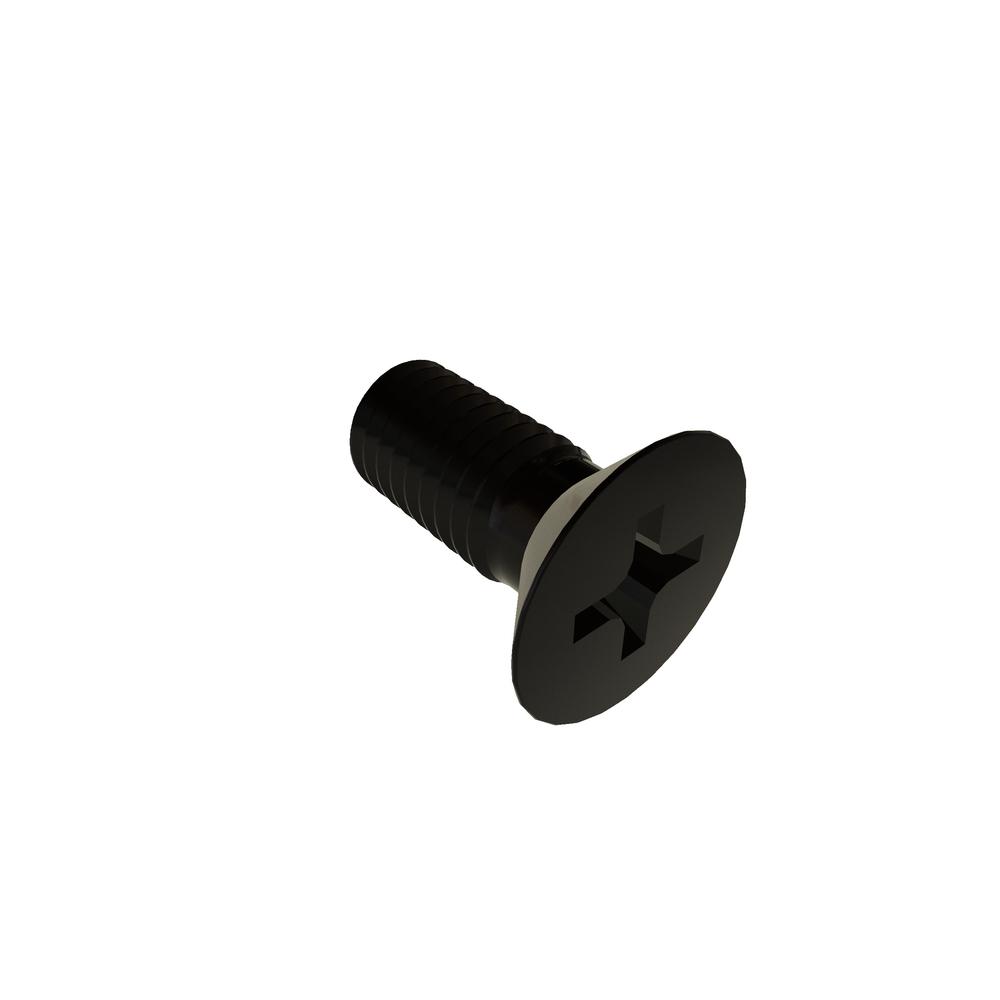

M5-.8 X 12 PHIL FLAT STL BLK OX RoHS
.5C12PFMZB
| Item Id | .5C12PFMZB |
| Description | M5-.8 X 12 PHIL FLAT STL BLK OX RoHS |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Black Oxide |
| Head Diameter (Max.) | 9.30 mm |
| Head Diameter (Min.) | 8.94 mm |
| Head Height | 2.70 mm |
| Head Type | Flat |
| Length | 12mm |
| Material | Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 5.00 mm |
| Recess Depth | 3.25 mm |
| Recess Diameter | 5.06 mm |
| Recess Width | 1.04 mm |
| RoHS | Compliant |
| Thread Size | M5x0.8 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
