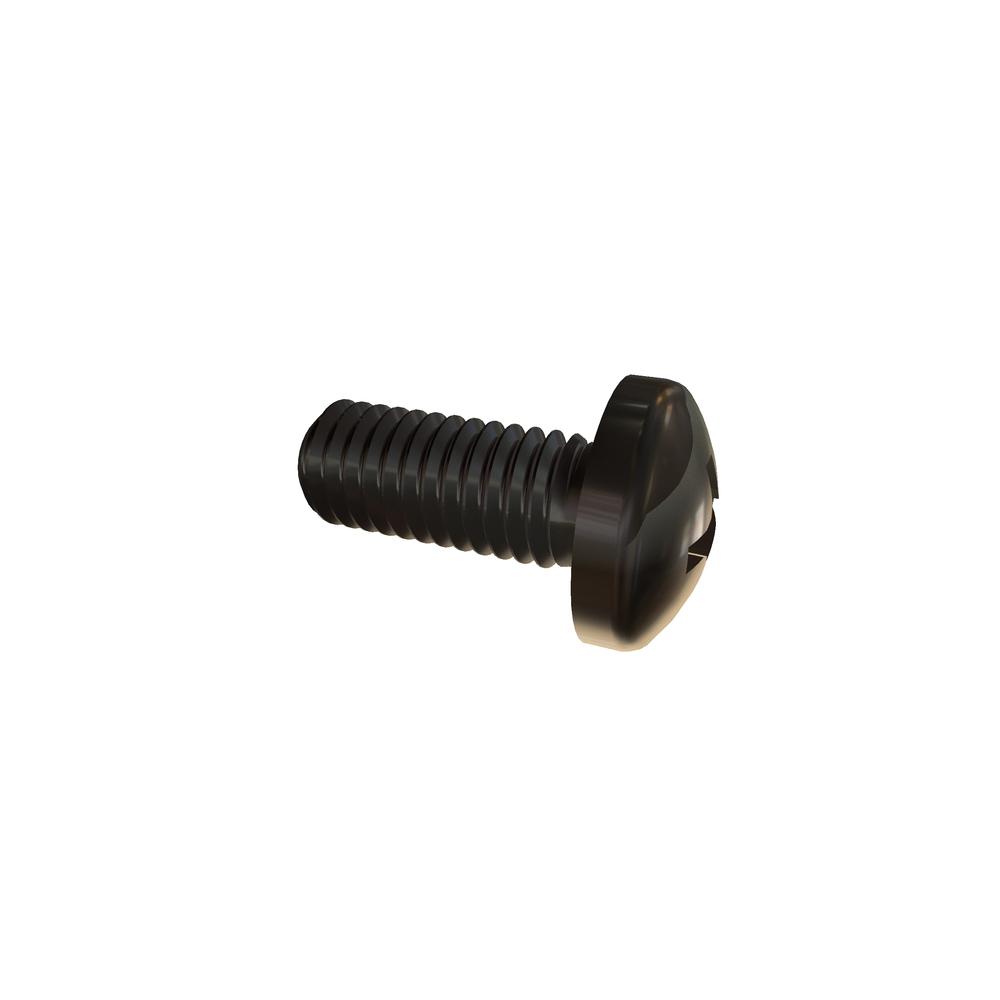

M5-.8 X 12 PHIL PAN DIN7985 316SST RoHS
.5C12PPM3
| Item Id | .5C12PPM3 |
| Description | M5-.8 X 12 PHIL PAN DIN7985 316SST RoHS |
| Alternate Codes | 90116A252 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 90116A252 |
| Body Diameter (Max.) | 5.00 mm |
| Body Diameter (Min.) | 4.36 mm |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 9.50 mm |
| Head Diameter (Min.) | 9.14 mm |
| Head Height (Max.) | 3.70 mm |
| Head Height (Min.) | 3.52 mm |
| Head Radius (Min.) | 8.00 mm |
| Head Type | Pan |
| Length | 12mm |
| Material | 316 Stainless Steel |
| Meets (Standard) | B18.6.7M |
| Nominal Diameter | 5.00 mm |
| Recess Depth (Max.) | 2.90 mm |
| Recess Depth (Min.) | 2.40 mm |
| Recess Diameter | 4.90 mm |
| Thread Size | M5x0.8 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
