  • Item Id: .5C12PPMS

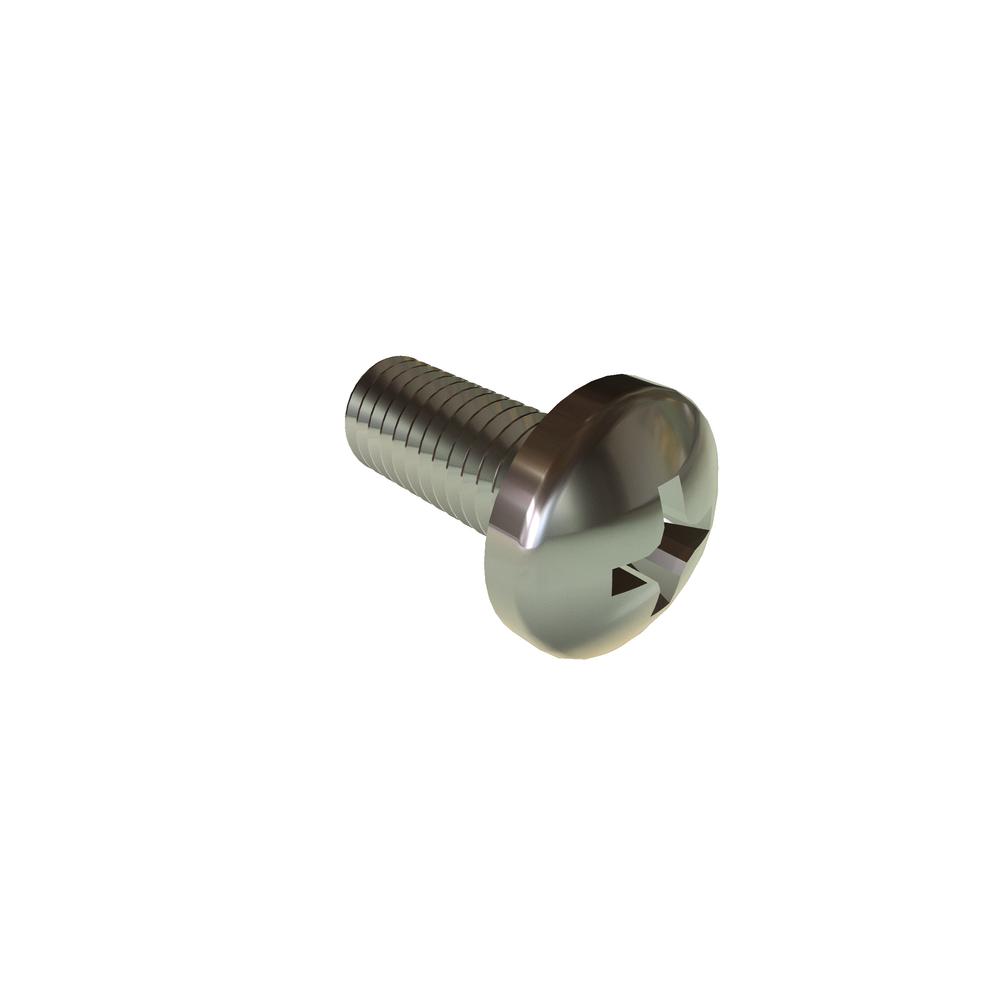

  • Description: M5-.8 X 12 PH PAN SST
  • Alternate Codes: BN660 M5X12
  • Quantity Discounts:
    1 to 99100 to 249250 to 499500 to 999Call For
    $0.359$0.189$0.149$0.138Larger Quantities
  • Extended Description: RoHS
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • Additional Industry Cross Reference92000A322
    Body Diameter (Max.)5.00 mm
    Body Diameter (Min.)4.36 mm
    BrandVARIED
    Drive Size2
    Drive TypePhillips
    FinishPlain
    Head Diameter (Max.)9.50 mm
    Head Diameter (Min.)9.14 mm
    Head Height (Max.)3.70 mm
    Head Height (Min.)3.52 mm
    Head Radius (Min.)8.00 mm
    Head TypePan
    MaterialStainless Steel
    Meets (Standard)B18.6.7M
    Nominal Diameter5.00 mm
    Recess Depth (Max.)2.90 mm
    Recess Depth (Min.)2.40 mm
    Recess Diameter4.90 mm
    RoHSCompliant
    Thread SizeM5x0.8
    Thread TypeMetric Coarse
    UnitsMetric

Item Substitutes

Item IdDescription
.5C12PPMZRM5-.8 X 12 PH PAN STL ZN CR3View Details
