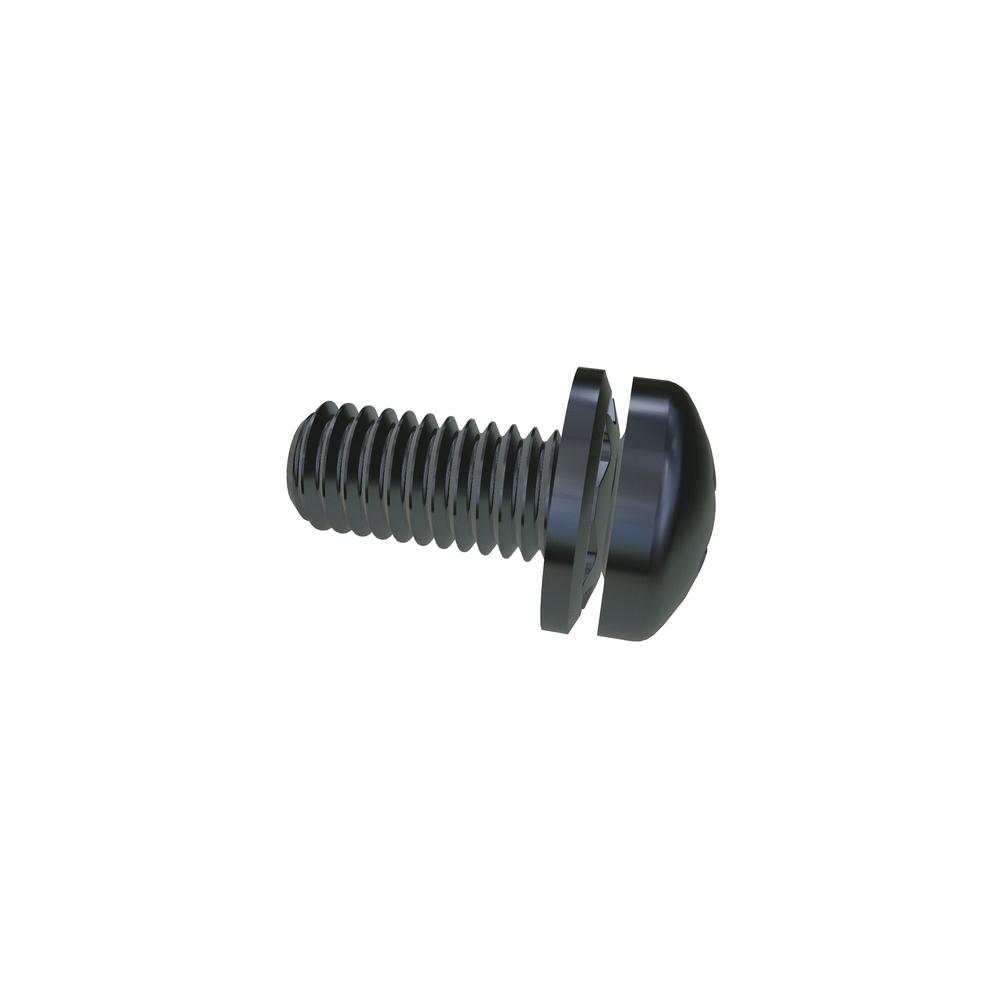

Image for reference purposes only. Actual product may vary.
.5C12PPQZR
M5-.8 X 12 PH PAN SQ CONE SEMS STL ZN
Alternate Codes: N/A
M5-.8 X 12 Phillips Pan Head Square Cone Sems Steel Zinc Plated RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.364 | $0.192 | $0.152 | $0.140 | $0.117 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 12mm |
| Thread Size | M5x0.8 |
| Finish | Zinc Cr3 |
| Brand | VARIED |
| Recess Diameter | 4.90 mm |
| Washer Type | Square Cone Washer |
| Drive Type | Phillips |
| Material | Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 5.00 mm |
| Head Type | Pan |
| Lock Washer Height (Min.) | 1.65 mm |
| Lock Washer Height (Max.) | 2.59 mm |
| Lock Washer Outside Diameter (Min.) | 9.47 mm |
| Lock Washer Outside Diameter (Max.) | 9.73 mm |
| Drive Size | 2 |
| Penetration Depth (Min.) | 2.40 mm |
| Penetration Depth (Max.) | 2.90 mm |
| Head Radius (Min.) | 8.00 mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 9.50 mm |
| Head Diameter (Min.) | 9.10 mm |
| Head Height (Max.) | 3.70 mm |
| Head Height (Min.) | 3.40 mm |
| Lock Washer Thickness (Min.) | 0.94 mm |
