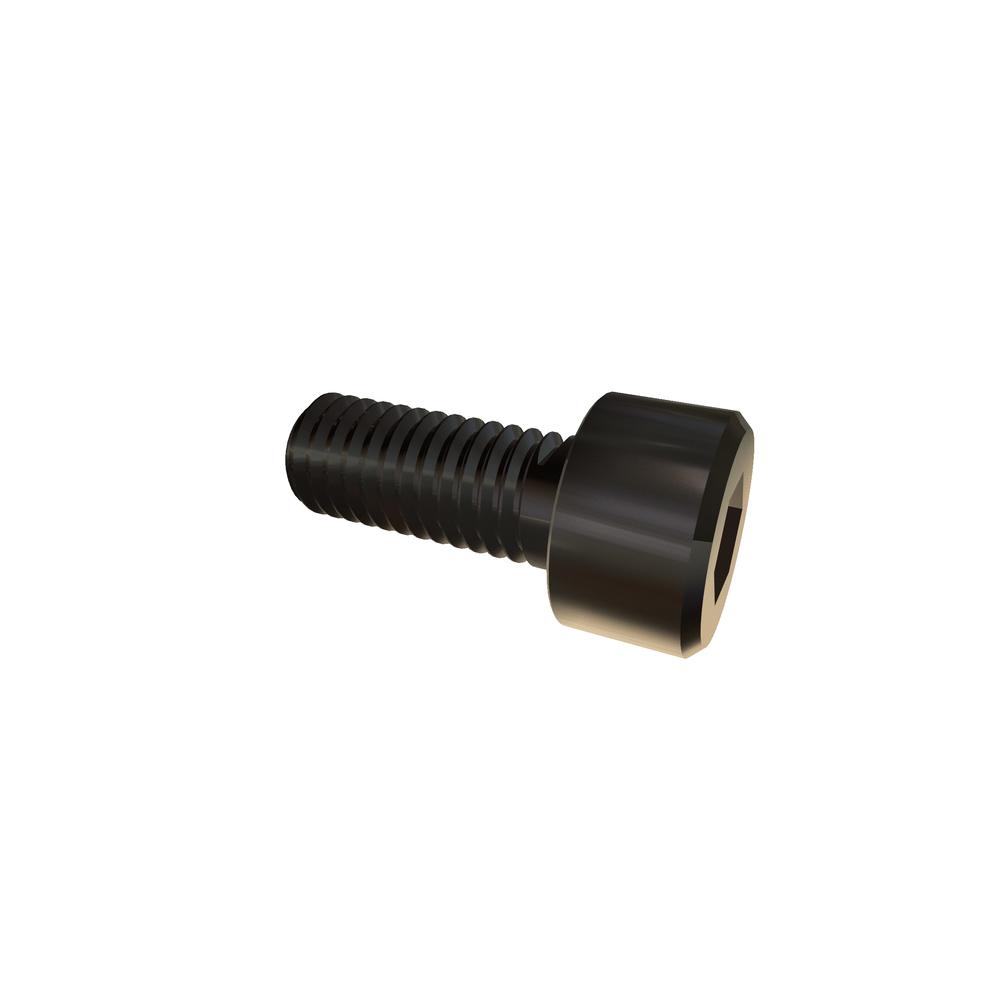

.5C12SHC3
M5-.8 X 12 SOC CAP 316 SST RoHS
Alternate Codes: 92290A228
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.518 | $0.273 | $0.216 | $0.199 | $0.167 | Larger Quantities |
In Stock
| Thread Size | M5x0.8 |
| Material | 316 Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Head Type | Socket |
| Drive Type | Hex Socket |
| Brand | VARIED |
| Additional Industry Cross Reference | 92290A228 |
| Key Engagement (Min.) | 2.50 mm |
| Length | 12mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3.1M |
| Body Diameter (Max.) | 5.00 mm |
| Head Diameter (Max.) | 8.50 mm |
| Head Diameter (Min.) | 8.27 mm |
| Head Height (Max.) | 5.00 mm |
| Head Height (Min.) | 4.86 mm |
| Hex Socket Size | 4.00 mm |
