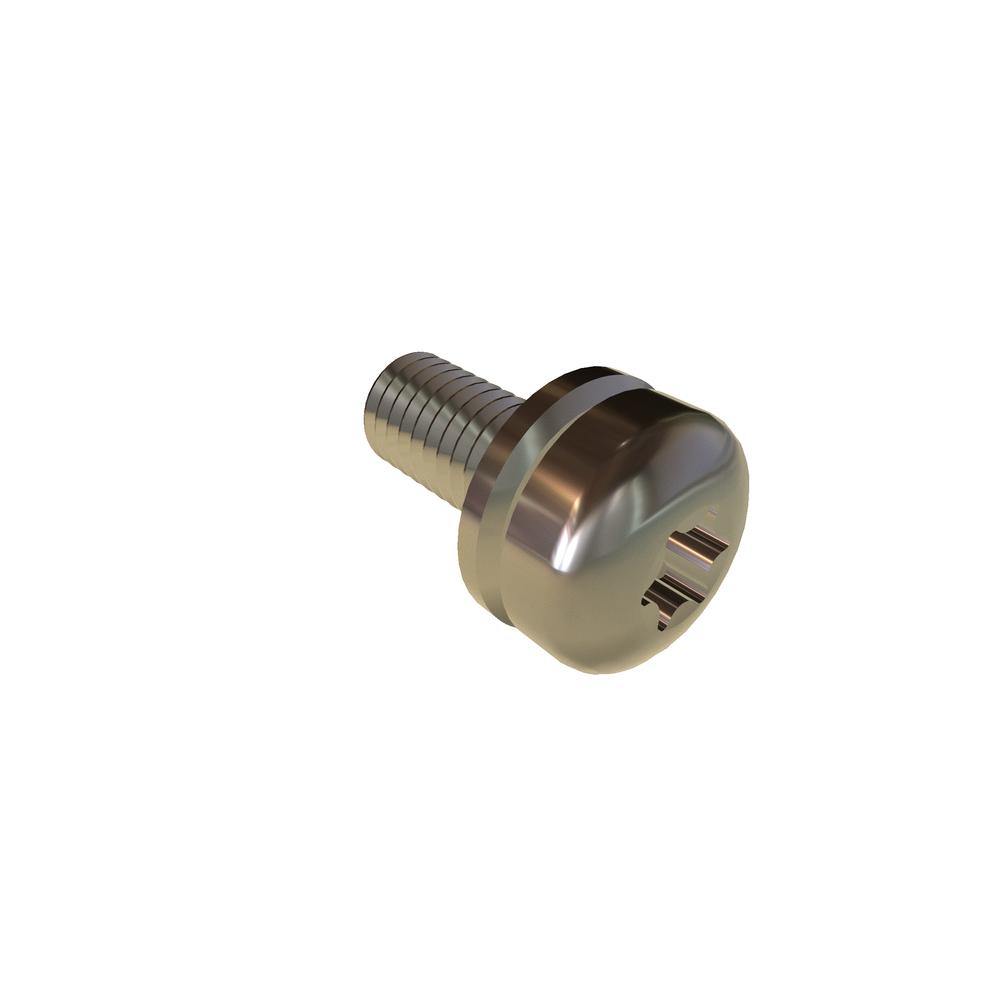

M5-.8 X 12 TORX PAN CREST CUP SEMS SST
.5C12XPCS
| Item Id | .5C12XPCS |
| Description | M5-.8 X 12 TORX PAN CREST CUP SEMS SST |
| Extended Description | RoHS |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | T25 |
| Drive Type | Torx |
| Finish | Plain |
| Head Diameter (Max.) | 9.50 mm |
| Head Diameter (Min.) | 9.14 mm |
| Head Height (Max.) | 3.70 mm |
| Head Height (Min.) | 3.52 mm |
| Head Radius (Min.) | 8.00 mm |
| Head Type | Pan |
| Length | 12mm |
| Lock Washer Height (Max.) | 2.00 mm |
| Lock Washer Height (Min.) | 1.53 mm |
| Lock Washer Outside Diameter (Max.) | 11.33 mm |
| Lock Washer Outside Diameter (Min.) | 11.00 mm |
| Lock Washer Thickness (Max.) | 1.00 mm |
| Lock Washer Thickness (Min.) | 0.76 mm |
| Material | Stainless Steel |
| Meets (Standard) | ISO 14583 |
| Nominal Diameter | 5.00 mm |
| Penetration Depth (Max.) | 1.91 mm |
| Penetration Depth (Min.) | 1.52 mm |
| Recess Diameter | 4.43 mm |
| RoHS | Compliant |
| Thread Size | M5x0.8 |
| Thread Type | Metric Coarse |
| Units | Metric |
| Washer Type | Crest Cup Washer |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
