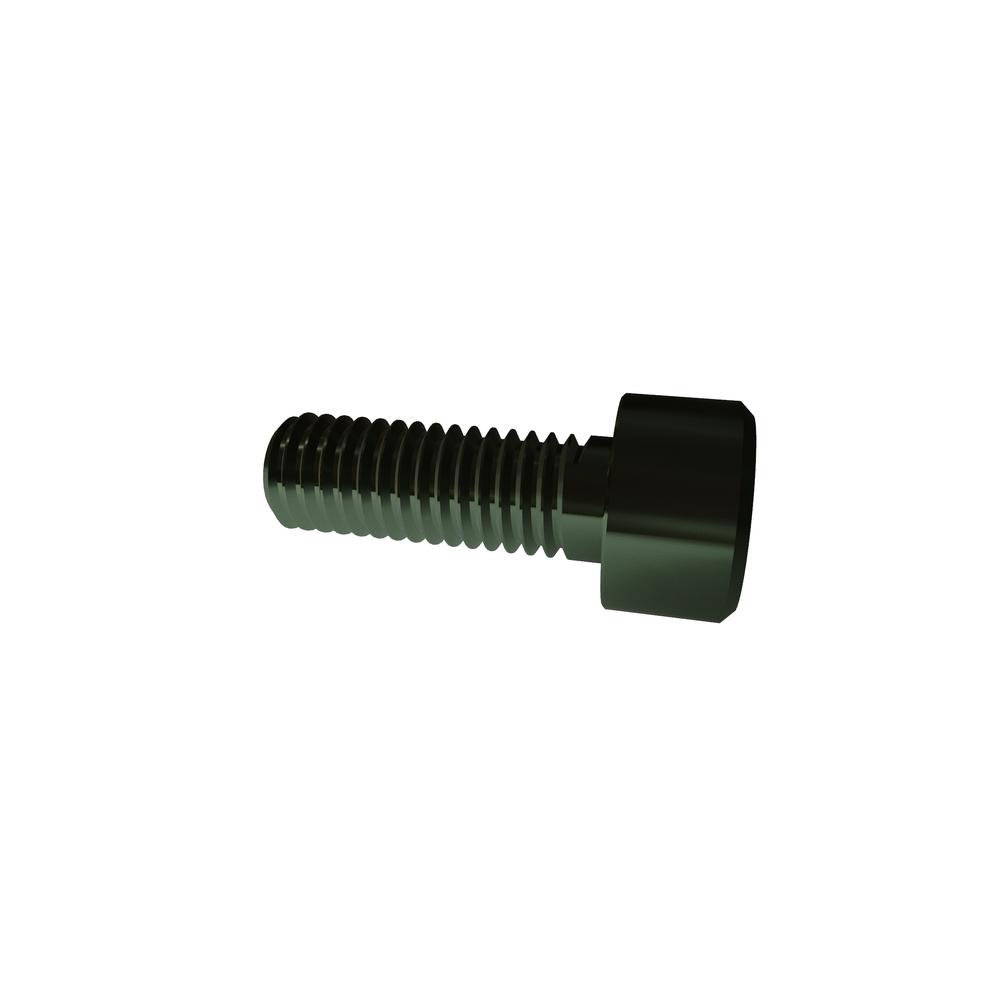

Image for reference purposes only. Actual product may vary.
.5C14SHCAR
M5-.8 X 14 SOC CAP ALLOY ZN CR3
Alternate Codes: N/A
M5-.8 X 14 Socket Cap DIN912 12.9 Alloy Zinc Plated RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.495 | $0.260 | $0.206 | $0.190 | $0.160 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | M5x0.8 |
| Finish | Zinc Cr3 Plated |
| Material | Alloy Steel |
| Head Type | Socket |
| Drive Type | Hex Socket |
| Brand | VARIED |
| Length | 14mm |
| Key Engagement (Min.) | 2.50 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3.1M |
| Body Diameter (Max.) | 5.00 mm |
| Head Diameter (Max.) | 8.50 mm |
| Head Diameter (Min.) | 8.27 mm |
| Head Height (Max.) | 5.00 mm |
| Head Height (Min.) | 4.86 mm |
| Hex Socket Size | 4.00 mm |
