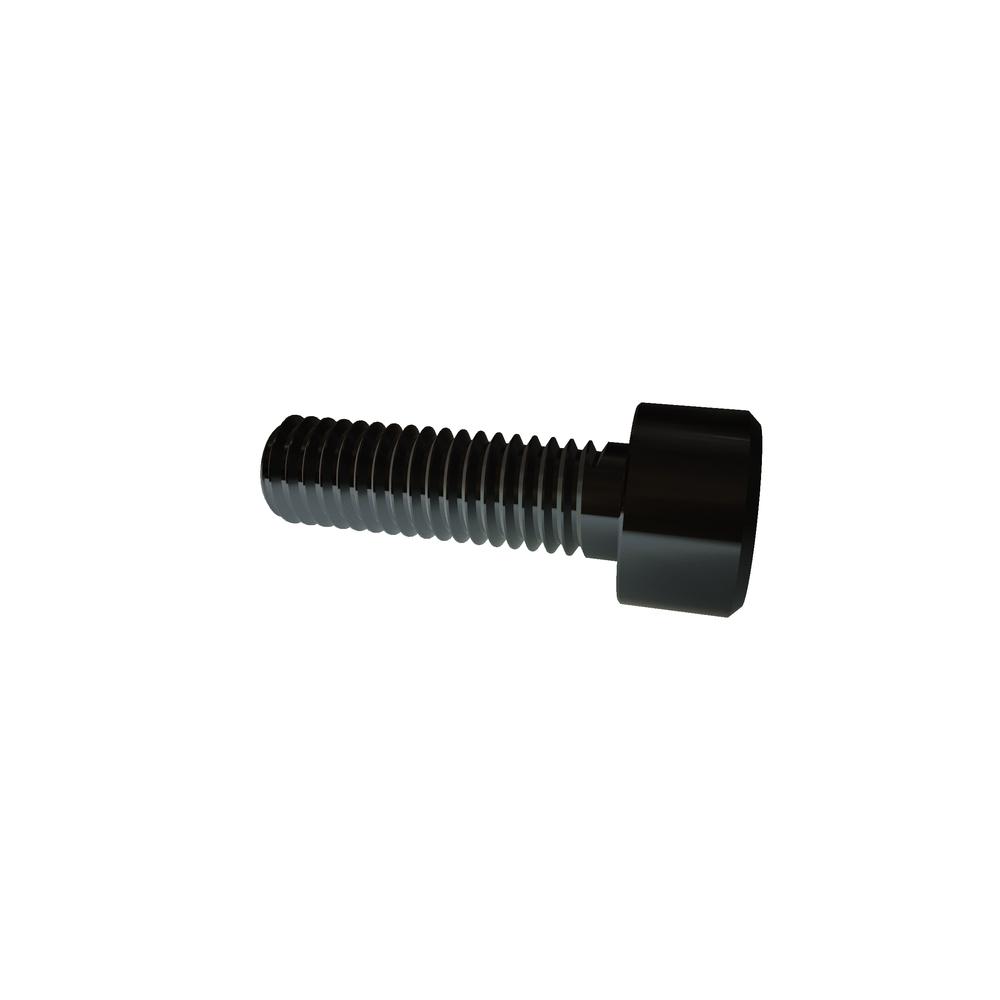

Image for reference purposes only. Actual product may vary.
.5C16SHCA
M5-.8 X 16 SOC CAP ALLOY
Alternate Codes: .5C16SHCY, 0301-0070, 91290A232
M5-.8 X 16 Socket Cap DIN912 12.9 Alloy RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.251 | $0.132 | $0.105 | $0.097 | $0.081 | Larger Quantities |
Out of stock
| Thread Size | M5x0.8 |
| Finish | Plain |
| Material | Alloy Steel |
| Head Type | Socket |
| Drive Type | Hex Socket |
| Brand | VARIED |
| Length | 16mm |
| Key Engagement (Min.) | 2.50 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Additional Industry Cross Reference | 91290A232 91290A232 |
| Meets (Standard) | ASME B18.3.1M |
| Body Diameter (Max.) | 5.00 mm |
| Head Diameter (Max.) | 8.50 mm |
| Head Diameter (Min.) | 8.27 mm |
| Head Height (Max.) | 5.00 mm |
| Head Height (Min.) | 4.86 mm |
| Hex Socket Size | 4.00 mm |
