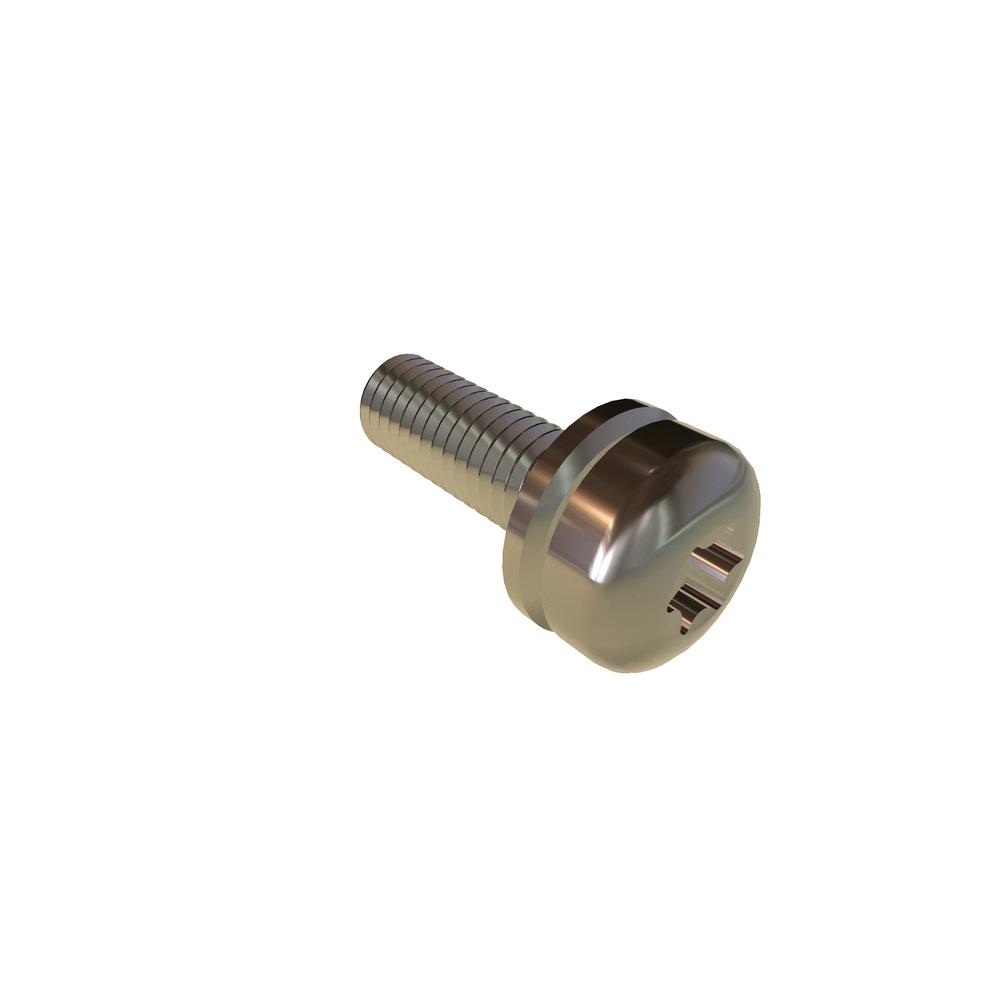

Image for reference purposes only. Actual product may vary.
.5C16XPCS
M5-.8 X 16 TORX PAN CREST CUP SEMS SST
Alternate Codes: N/A
M5-.8 X 16 Torx Pan Head Crest Cup Sems Stainless Steel RoHS
Pricing per Unit
| 1-99 pcs |
|---|
| $1.069 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 16mm |
| Thread Size | M5x0.8 |
| Finish | Plain |
| Brand | VARIED |
| Recess Diameter | 4.43 mm |
| Washer Type | Crest Cup Washer |
| Drive Type | Torx |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 5.00 mm |
| Head Type | Pan |
| Lock Washer Thickness (Max.) | 1.00 mm |
| Lock Washer Height (Min.) | 1.53 mm |
| Lock Washer Height (Max.) | 2.00 mm |
| Lock Washer Outside Diameter (Min.) | 11.00 mm |
| Lock Washer Outside Diameter (Max.) | 11.33 mm |
| Drive Size | T25 |
| Penetration Depth (Min.) | 1.52 mm |
| Penetration Depth (Max.) | 1.91 mm |
| Head Radius (Min.) | 8.00 mm |
| RoHS | Compliant |
| Meets (Standard) | ISO 14583 |
| Head Diameter (Max.) | 9.50 mm |
| Head Diameter (Min.) | 9.14 mm |
| Head Height (Max.) | 3.70 mm |
| Head Height (Min.) | 3.52 mm |
| Lock Washer Thickness (Min.) | 0.76 mm |
