.5C16ZPMS

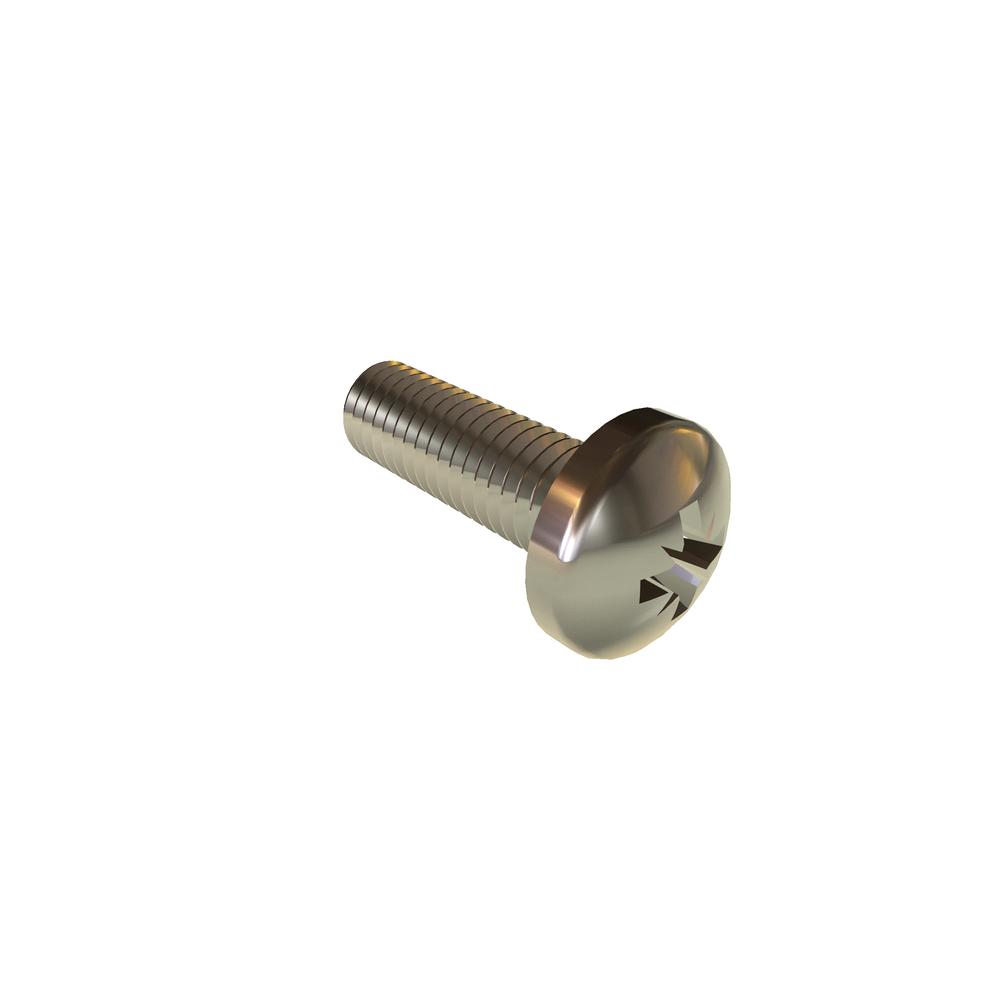

M5-.8 X 16 POZI PAN SST RoHS
Alternate Codes: N/A
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs |
|---|---|---|---|
| $0.624 | $0.343 | $0.286 | $0.245 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M5x0.8 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 5.00 mm |
| Head Type | Pan |
| Drive Type | Pozi |
| Drive Size | 2 |
| Recess Diameter | 4.76 mm |
| Head Radius (Min.) | 8.00 mm |
| Body Diameter (Min.) | 4.36 mm |
| Recess Depth | 2.94 mm |
| Brand | VARIED |
| Length | 16mm |
| RoHS | Compliant |
| Meets (Standard) | B18.6.7M |
| Body Diameter (Max.) | 5.00 mm |
| Head Diameter (Max.) | 9.50 mm |
| Head Diameter (Min.) | 9.14 mm |
| Head Height (Max.) | 3.70 mm |
| Head Height (Min.) | 3.52 mm |
