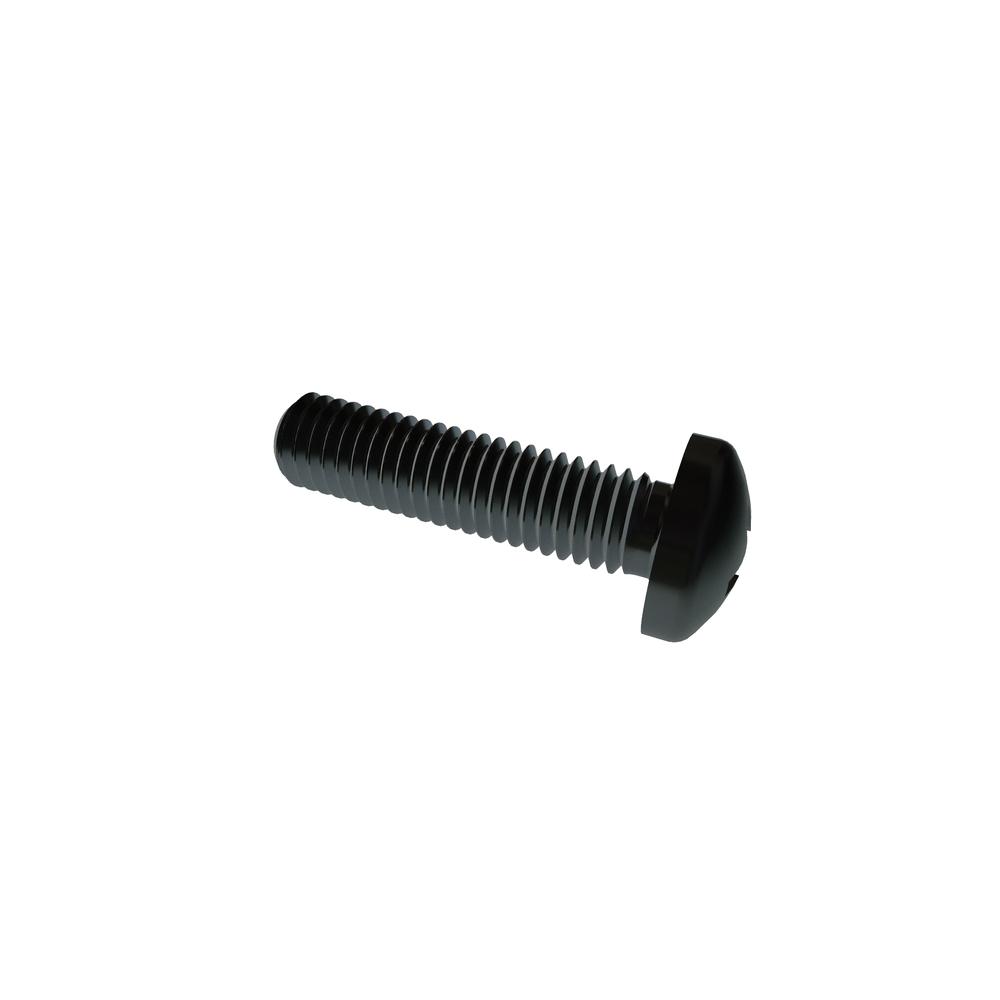

  • Item Id: .5C20PPMZR
  • Description: M5-.8 X 20 PH PAN STL ZN CR3
  • Alternate Codes: .5C20PPMZZ/R, 92005A328, BN384 M5X20
  • Quantity Discounts:
    1 to 99100 to 249250 to 499500 to 999Call For
    $0.217$0.114$0.090$0.083Larger Quantities
  • Extended Description:
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
    • Additional Industry Cross Reference92005A328 92005A328
    Body Diameter (Max.)5.00 mm
    Body Diameter (Min.)4.36 mm
    BrandVARIED
    Drive Size2
    Drive TypePhillips
    FinishZinc Cr3
    Head Diameter (Max.)9.50 mm
    Head Diameter (Min.)9.14 mm
    Head Height (Max.)3.70 mm
    Head Height (Min.)3.52 mm
    Head Radius (Min.)8.00 mm
    Head TypePan
    MaterialSteel
    Meets (Standard)B18.6.7M
    Nominal Diameter5.00 mm
    Recess Depth (Max.)2.90 mm
    Recess Depth (Min.)2.40 mm
    Recess Diameter4.90 mm
    RoHSCompliant
    Thread SizeM5x0.8
    Thread TypeMetric Coarse
    UnitsMetric

Item Substitutes

Item IdDescription
.5C20PPMSM5-.8 X 20 PH PAN SSTView Details
