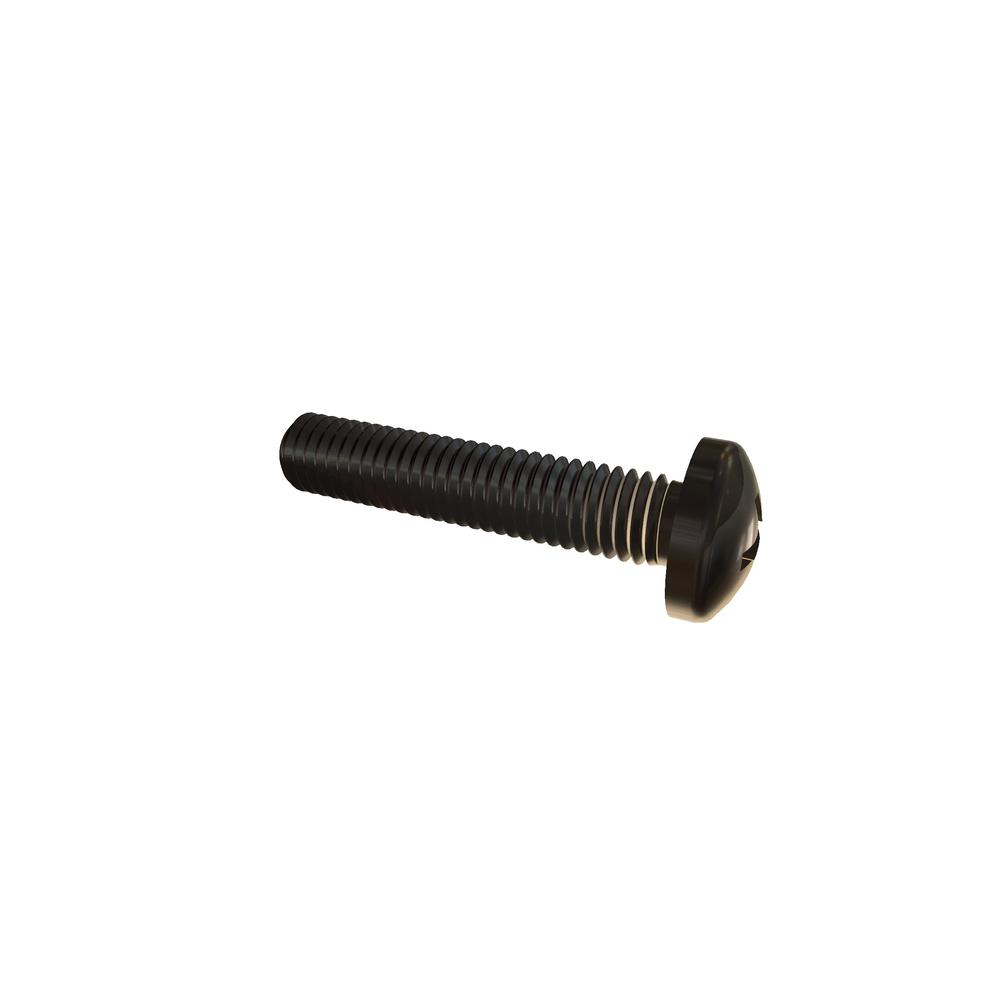

Image for reference purposes only. Actual product may vary.
.5C25PPM3
M5-.8 X 25 PHIL PAN 316 SST
Alternate Codes: 90116A262
M5-.8 X 25 Phillips Pan Head 316 Stainless Steel RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs |
|---|---|
| $0.552 | $0.304 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 25mm |
| Thread Size | M5x0.8 |
| Finish | Plain |
| Brand | VARIED |
| Drive Type | Phillips |
| Material | 316 Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 5.00 mm |
| Head Type | Pan |
| Drive Size | 2 |
| Recess Diameter | 4.90 mm |
| Head Radius (Min.) | 8.00 mm |
| Body Diameter (Min.) | 4.36 mm |
| Recess Depth (Min.) | 2.40 mm |
| Recess Depth (Max.) | 2.90 mm |
| Additional Industry Cross Reference | 90116A262 |
| Meets (Standard) | B18.6.7M |
| Body Diameter (Max.) | 5.00 mm |
| Head Diameter (Max.) | 9.50 mm |
| Head Diameter (Min.) | 9.14 mm |
| Head Height (Max.) | 3.70 mm |
| Head Height (Min.) | 3.52 mm |
