.5C30HHDS
M5-.8 X 30 HX HD SST RoHS
Alternate Codes: N/A

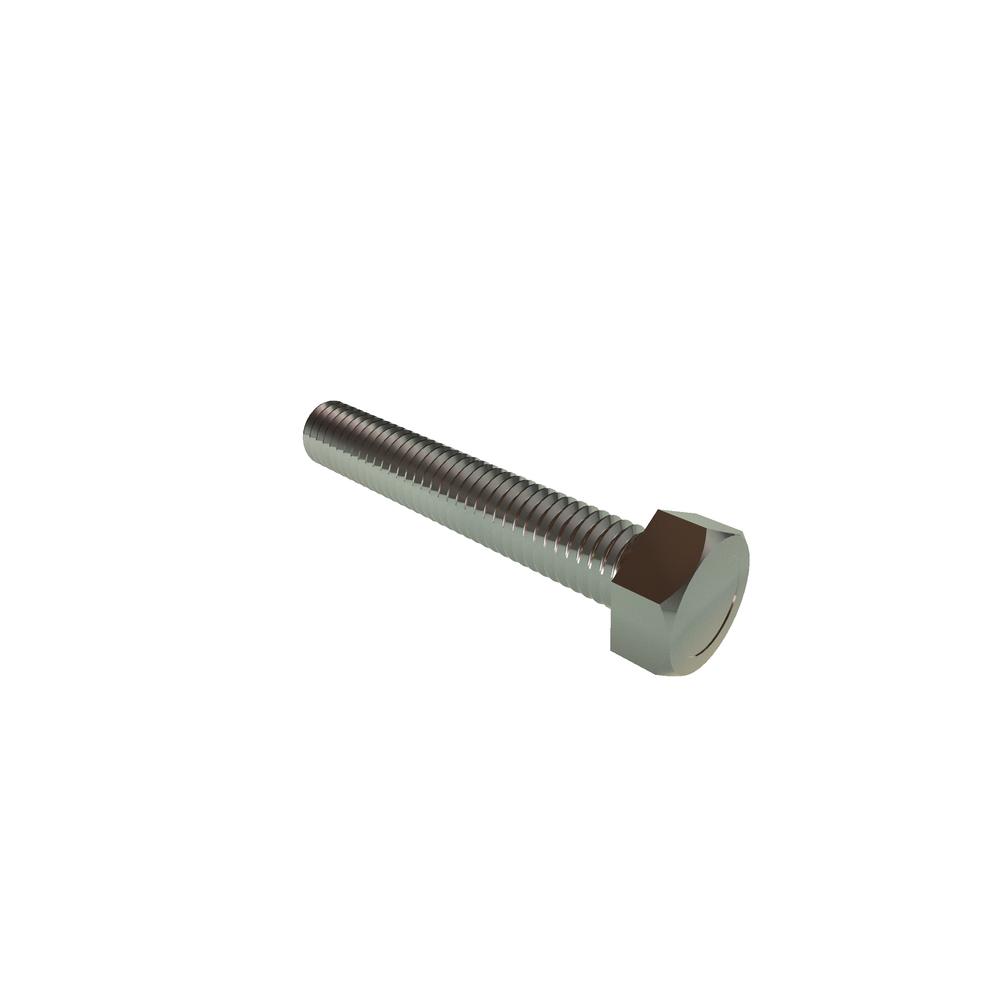

M5-.8 X 30 Hex Head Partial Thread DIN931 Stainless Steel RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs |
|---|---|---|
| $0.458 | $0.241 | $0.191 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Thread Size | M5x0.8 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 5.00 mm |
| Head Type | Hex |
| Body Diameter (Min.) | 4.36 mm |
| Brand | VARIED |
| RoHS | Compliant |
| Body Diameter (Max.) | 5.00 mm |
| Head Height (Max.) | 3.80 mm |
| Head Height (Min.) | 3.30 mm |
| Width Across Flat (Max.) | 8.00 mm |
| Width Across Flat (Min.) | 7.78 mm |
| Total Length | 30mm |
