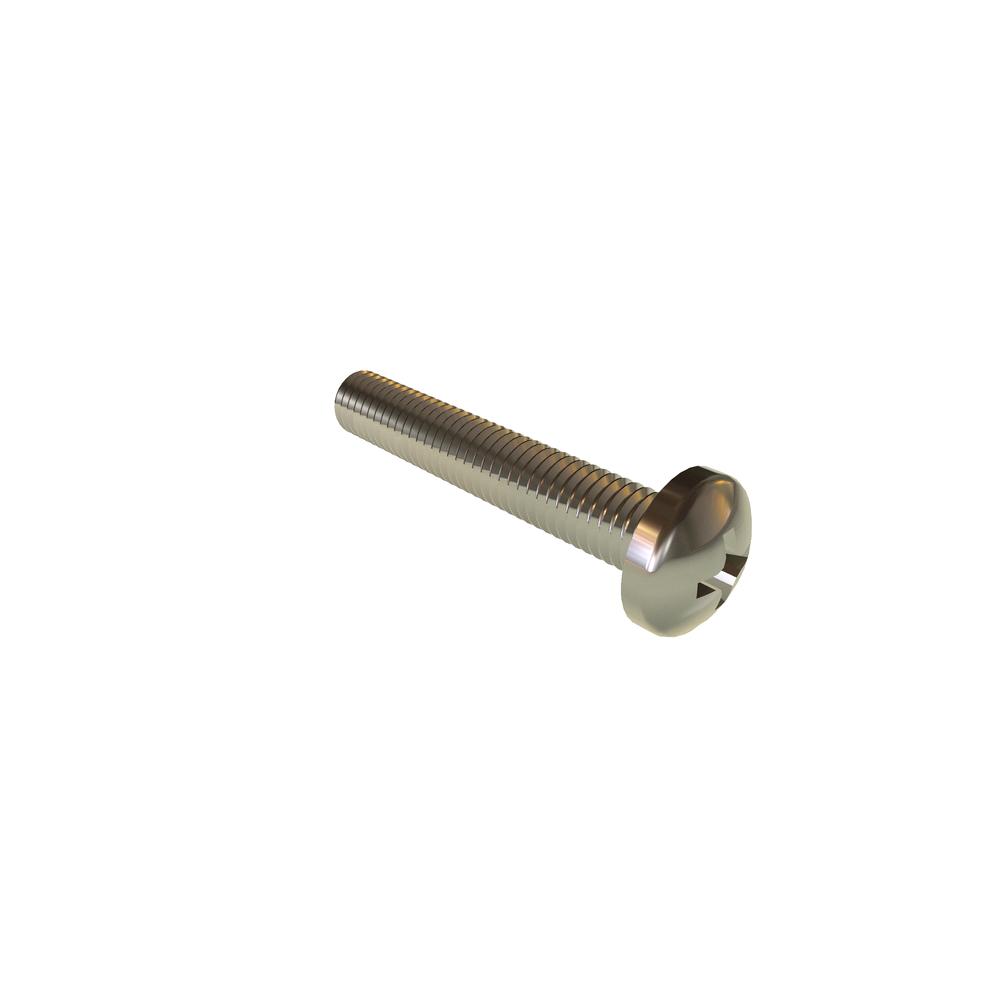

M5-.8 X 30 PHIL PAN DIN7985 SST RoHS

.5C30PPMS

Item Id.5C30PPMS
DescriptionM5-.8 X 30 PHIL PAN DIN7985 SST RoHS
Alternate Codes92000A332
Extended Description
PackagingEA
Additional Industry Cross Reference92000A332 92000A332
Body Diameter (Max.)5.00 mm
Body Diameter (Min.)4.36 mm
BrandVARIED
Drive Size2
Drive TypePhillips
FinishPlain
Head Diameter (Max.)9.50 mm
Head Diameter (Min.)9.14 mm
Head Height (Max.)3.70 mm
Head Height (Min.)3.52 mm
Head Radius (Min.)8.00 mm
Head TypePan
Length30mm
MaterialStainless Steel
Meets (Standard)B18.6.7M
Nominal Diameter5.00 mm
Recess Depth (Max.)2.90 mm
Recess Depth (Min.)2.40 mm
Recess Diameter4.90 mm
RoHSCompliant
Thread SizeM5x0.8
Thread TypeMetric Coarse
UnitsMetric
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
