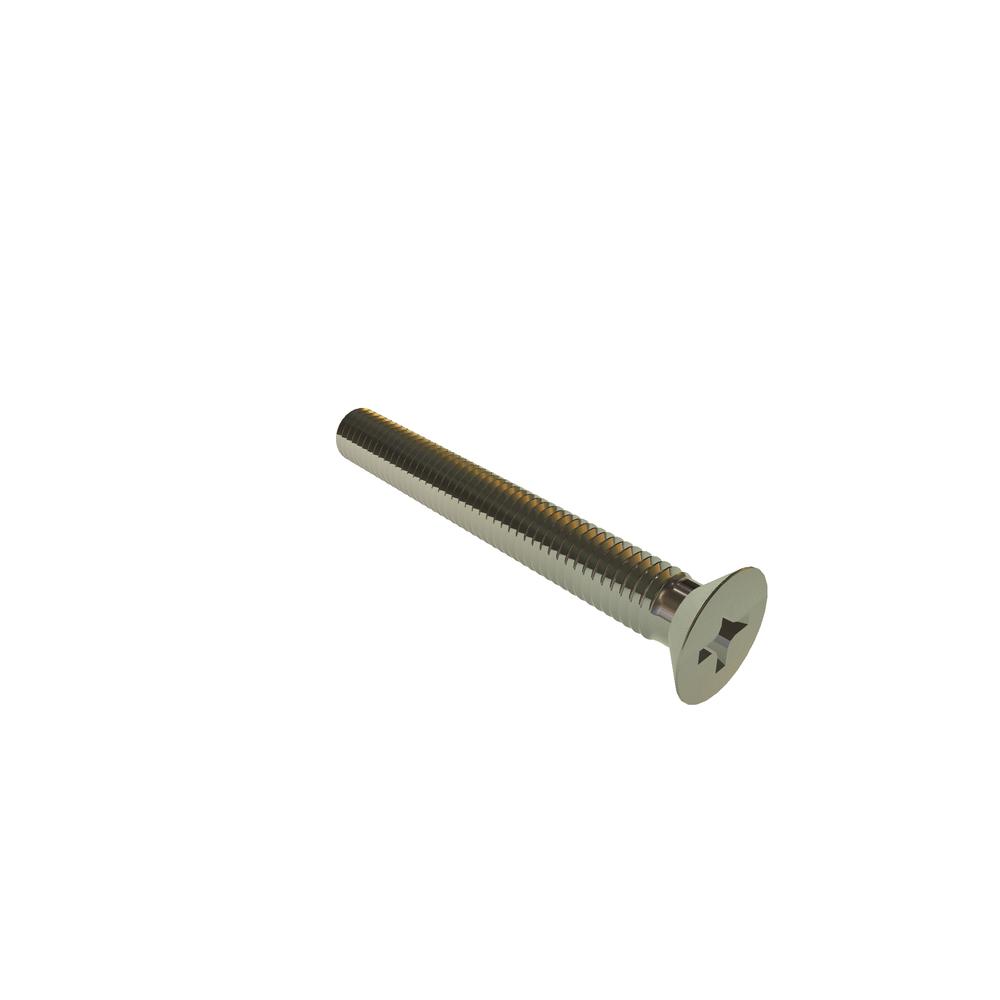

M5-.8 X 40 PHIL FLAT DIN965 SST RoHS
.5C40PFMS
| Item Id | .5C40PFMS |
| Description | M5-.8 X 40 PHIL FLAT DIN965 SST RoHS |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92010A342 |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 9.30 mm |
| Head Diameter (Min.) | 8.94 mm |
| Head Height | 2.70 mm |
| Head Type | Flat |
| Length | 40mm |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 5.00 mm |
| Recess Depth (Max.) | 3.20 mm |
| Recess Depth (Min.) | 2.70 mm |
| Recess Diameter | 5.2 mm |
| Recess Width | 1.04 mm |
| RoHS | Compliant |
| Thread Size | M5x0.8 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
