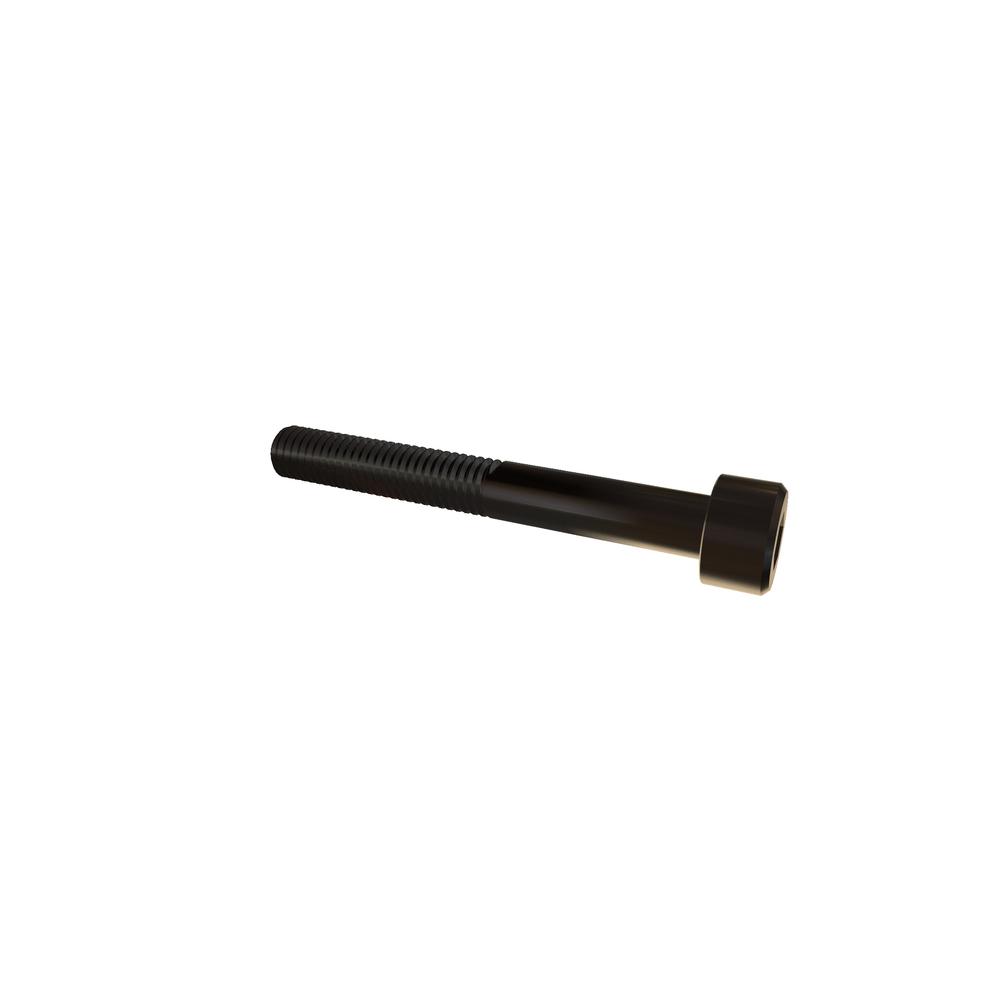

Image for reference purposes only. Actual product may vary.
.5C40SHC3N/V
M5-.8 X 40 SOC CAP VNT SST NICKEL PLT
Alternate Codes: .5C40SHCSN/V
RoHS. 25 PER BAG
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 5.00 mm |
| Length | 40mm |
| Thread Size | M5x0.8 |
| Finish | Nickel |
| Material | 316 Stainless Steel |
| Type | Vented Socket Cap |
| Brand | VARIED |
| Drive Type | Hex Socket |
| Units | Metric |
| Thread Type | Metric Coarse |
| Key Engagement | 2.50 mm |
| Body Diameter (Max.) | 5.00 mm |
| Head Diameter (Max.) | 8.50 mm |
| Head Diameter (Min.) | 8.27 mm |
| Head Height (Max.) | 5.00 mm |
| Head Height (Min.) | 4.86 mm |
| Hex Socket Size | 4.00 mm |
| Vent Hole Diameter | 1.50 mm |
