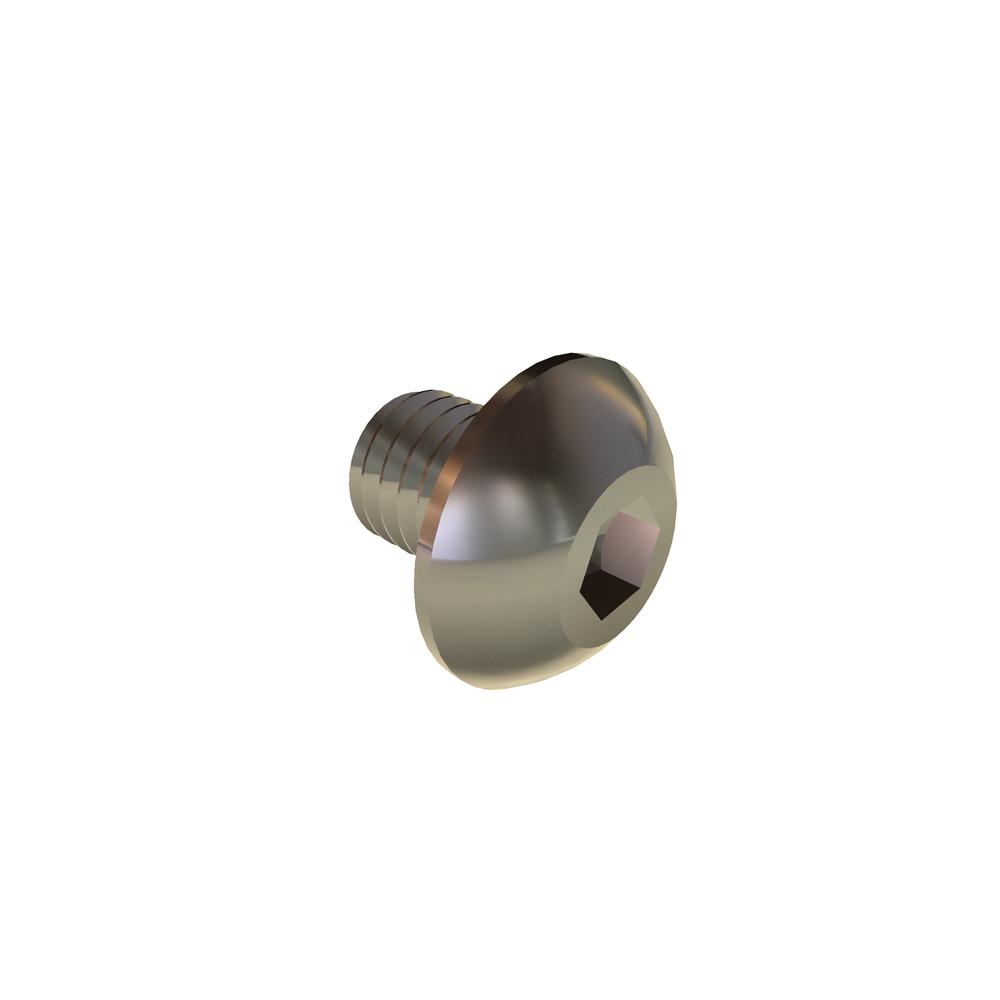

Image for reference purposes only. Actual product may vary.
.5C6BHCS
M5-.8 X 6 BUT SOC SST RoHS
Alternate Codes: 92095A206
M5-.8 X 6 Button Head Socket ISO 7380 Stainless Steel RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.215 | $0.113 | $0.090 | $0.083 | $0.069 | Larger Quantities |
In Stock
Maximum stock already in cart
| Nominal Diameter | 5 mm |
| Length | 6mm |
| Thread Size | M5x0.8 |
| Finish | Plain |
| Material | Stainless Steel |
| Head Type | Button |
| Drive Type | Hex Socket |
| Head Height (Max.) | 2.75 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Fillet Transition Diameter (Min.) | 5.40 mm |
| Fillet Transition Diameter (Max.) | 5.70 mm |
| Head Side Height (Ref.) | 0.50 mm |
| Key Engagement | 1.56 mm |
| Brand | VARIED |
| Additional Industry Cross Reference | 92095A308 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3.4M |
| Head Diameter (Max.) | 9.50 mm |
| Head Diameter (Min.) | 9.14 mm |
| Head Height (Min.) | 2.50 mm |
| Hex Socket Size | 3.00 mm |
