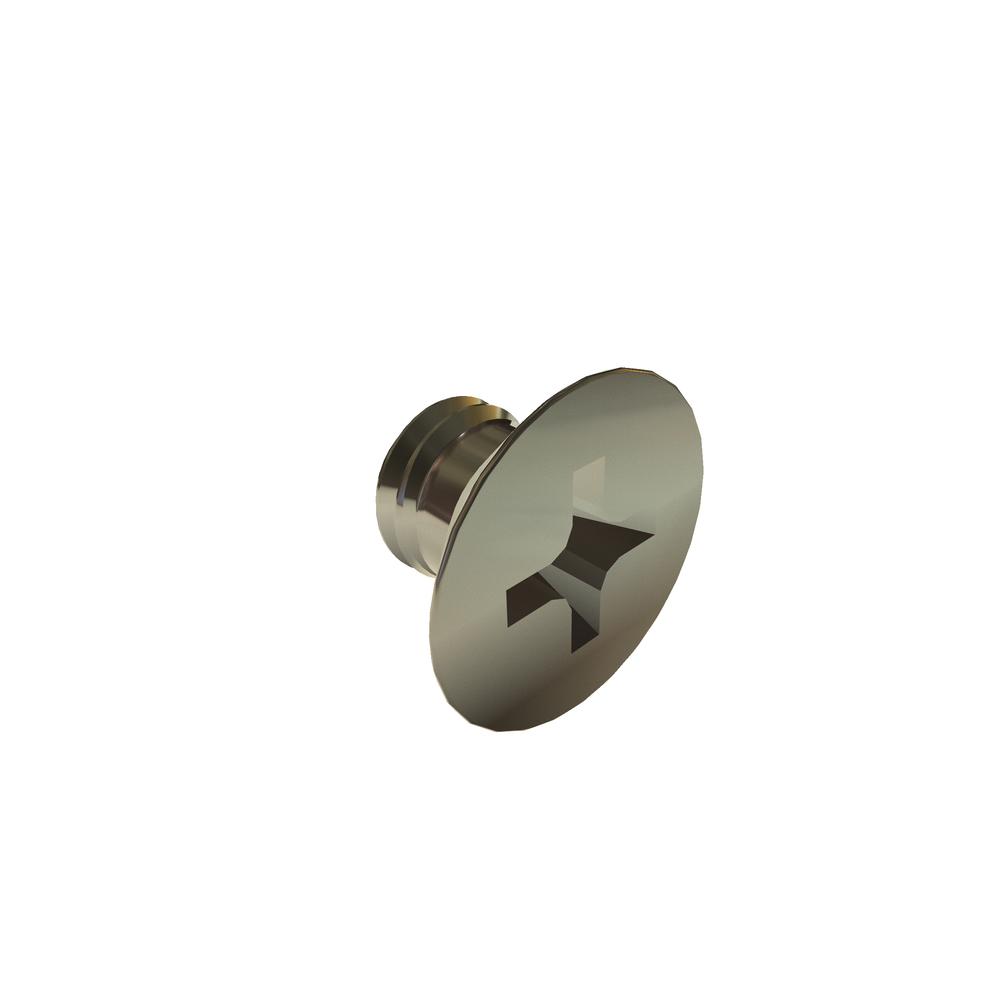

.5C6PFMS
M5-.8 X 6 PHIL FLAT SST RoHS
Alternate Codes: N/A
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M5x0.8 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 5.00 mm |
| Head Type | Flat |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 5.2 mm |
| Head Height | 2.70 mm |
| Recess Depth (Min.) | 2.70 mm |
| Recess Depth (Max.) | 3.20 mm |
| Recess Width | 1.04 mm |
| Brand | VARIED |
| Additional Industry Cross Reference | 92010A314 |
| Length | 6mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 9.30 mm |
| Head Diameter (Min.) | 8.94 mm |
